TR15RA Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC WALL MOUNT ADAPTER 9V 13W

Part	Efficiency	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Input Type	Voltage - Output	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Input Connector	Current - Output (Max) [Max]	Cord Length	Cord Length	Region Utilized	Form	Output Connector	Output Connector [diameter]	Output Connector [z]	Output Connector [custom]	Output Connector [custom]	Output Connector [x]

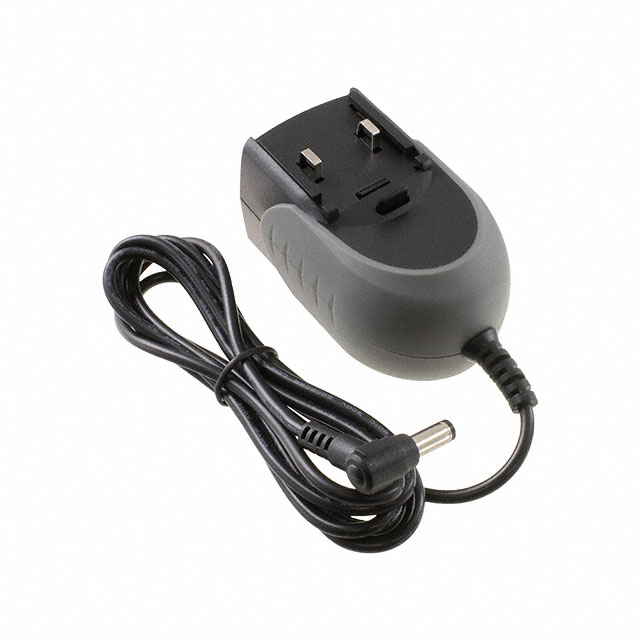

Cincon Electronics Co. LTD TR15RA090-01E03-GY-BK VI	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	-20 ░C	60 °C	CE cULus GS PSE	Multi-Blade (Sold Separately)	9 V	Positive Center	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	13 W	Multi-Blade (Sold Separately)	1.4 A	70.9 "	1.8 m	International	Wall Mount	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm

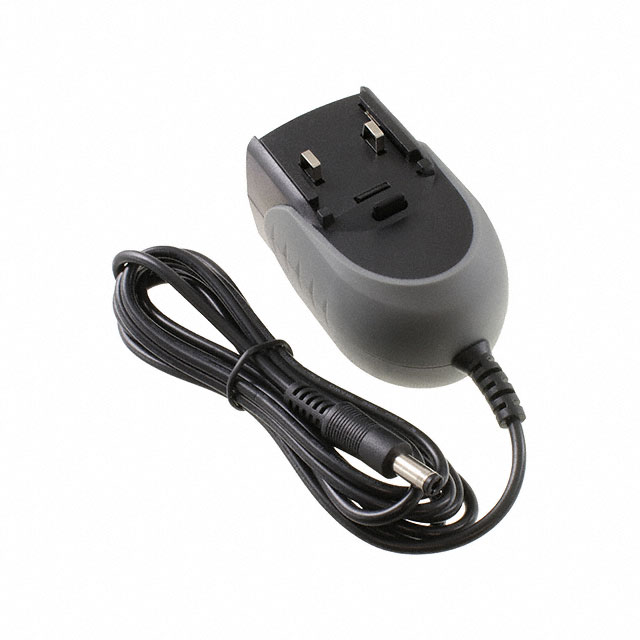

Cincon Electronics Co. LTD TR15RA050-11E03-GY-BK VI	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	-20 ░C	60 °C	CE cULus GS PSE	Multi-Blade (Sold Separately)	5 V	Positive Center	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	10 W	Multi-Blade (Sold Separately)	2 A	70.9 "	1.8 m	International	Wall Mount	Barrel Plug			2.1 mm	5.5 mm	12 mm
Cincon Electronics Co. LTD TR15RA240-11E03-GY-BK VI	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	-20 ░C	60 °C	CE cULus GS PSE	Multi-Blade (Sold Separately)	24 V	Positive Center	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	15 W	Multi-Blade (Sold Separately)	625 mA	70.9 "	1.8 m	International	Wall Mount	Barrel Plug			2.1 mm	5.5 mm	12 mm
Cincon Electronics Co. LTD TR15RA150-11E03-GY-BK VI	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	-20 ░C	60 °C	CE cULus GS PSE	Multi-Blade (Sold Separately)	15 V	Positive Center	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	15 W	Multi-Blade (Sold Separately)	1 A	70.9 "	1.8 m	International	Wall Mount	Barrel Plug			2.1 mm	5.5 mm	12 mm
Cincon Electronics Co. LTD TR15RA180-01E03-GY-BK VI	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	-20 ░C	60 °C	CE cULus GS PSE	Multi-Blade (Sold Separately)	18 V	Positive Center	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	15 W	Multi-Blade (Sold Separately)	830 mA	70.9 "	1.8 m	International	Wall Mount	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TR15RA120-11E03-GY-BK VI	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	-20 ░C	60 °C	CE cULus GS PSE	Multi-Blade (Sold Separately)	12 V	Positive Center	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	13 W	Multi-Blade (Sold Separately)		70.9 "	1.8 m	International	Wall Mount	Barrel Plug			2.1 mm	5.5 mm	12 mm
