LPPB131 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 13POS 0.05 GOLD PCB
| Part | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Fastening Type | Contact Finish - Mating | Number of Positions | Contact Length - Post | Contact Length - Post | Contact Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Shape | Insulation Material | Number of Positions Loaded | Contact Finish - Post | Contact Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

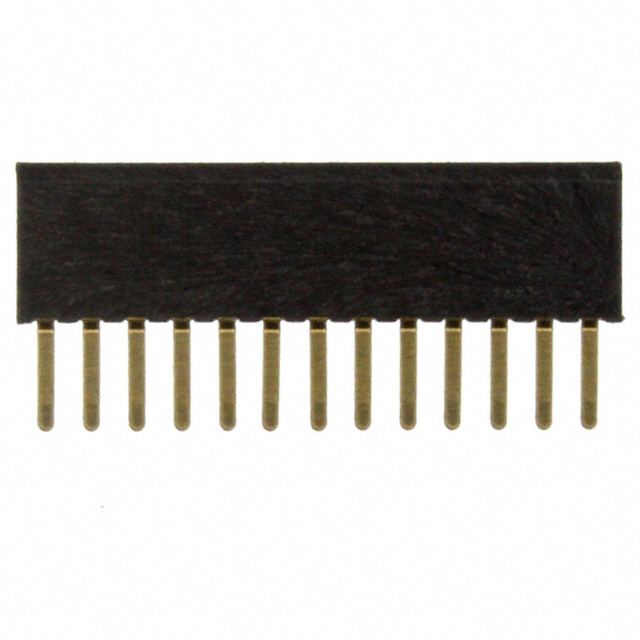

 Sullins Connector Solutions | Solder | Flash | Flash | Push-Pull | Gold | 13 | 0.118 in | 3 mm | Female Socket | UL94 V-0 | 0.05 in | 1.27 mm | 0.177 in | 4.5 mm | Square | Liquid Crystal Polymer (LCP) | All | Gold | Phosphor Bronze | Header | 125 °C | -40 °C | Through Hole | 1 |

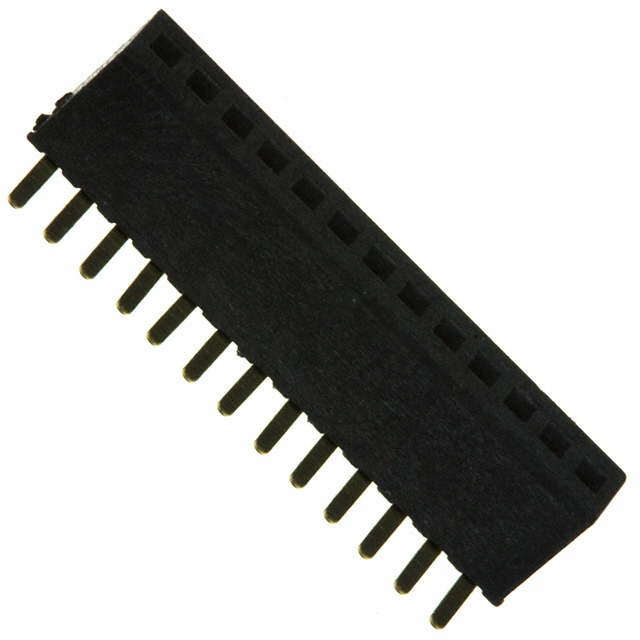

 Sullins Connector Solutions | Solder | Flash | Flash | Push-Pull | Gold | 13 | 0.091 in | 2.3 mm | Female Socket | UL94 V-0 | 0.05 in | 1.27 mm | 0.087 " | 2.2 mm | Square | Liquid Crystal Polymer (LCP) | All | Gold | Phosphor Bronze | Header | 105 ░C | -40 °C | Through Hole Right Angle | 1 |
