09390100 Series
Manufacturer: HARTING
Beta
⌘K
10B HP SCREW DOWN HOOD, TOP ENTRY, PG21
| Part | Lock Location | Connector Type | Thread Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Style | Housing Material | Housing Finish | Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Screw Locks on Hood | Hood | PG21 | 75 mm | 2.795 " | 3.386 " | 2.953 " | 71 mm | 86 mm | Top Entry | ||||||||||

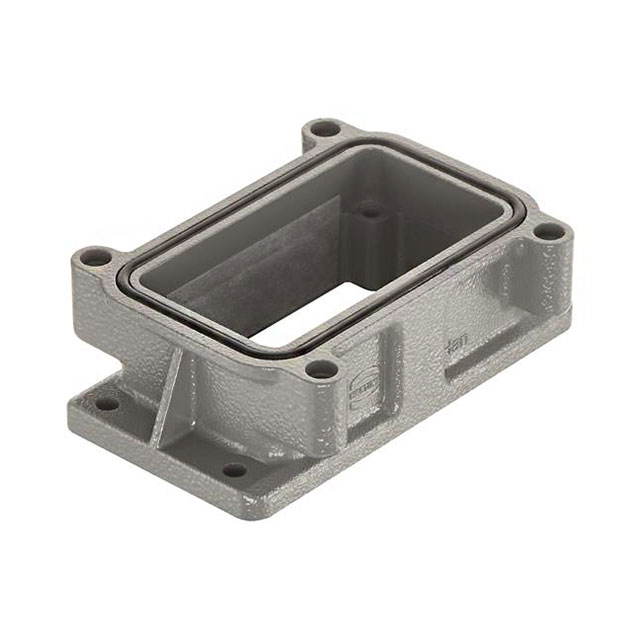

 HARTING | Screw Locks on Hood | Base - Panel Mount | 1.11 in | 2.583 in | 3.661 in | Bottom Entry | Aluminum Die Cast | Powder Coated | 10B | 93 mm | 28.2 mm | 65.6 mm | IP66 IP68 IP69K | 125 °C | -40 C | Gray | ||||
HARTING | Screw Locks on Hood | Hood | PG21 | 75 mm | 2.795 " | 3.386 " | 2.953 " | 71 mm | 86 mm | Side Entry | ||||||||||

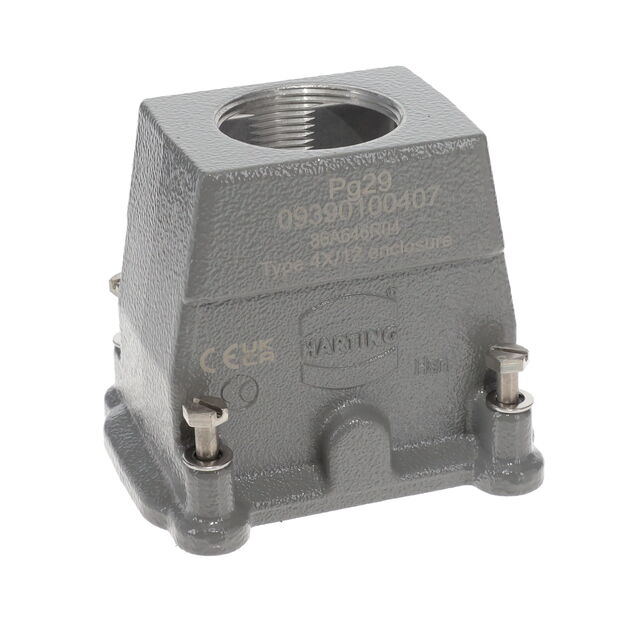

 HARTING | Screw Locks on Hood | Hood | PG29 | 75 mm | 2.795 " | 3.386 " | 2.953 " | 71 mm | 86 mm | Top Entry |
