H3DK-S Series

Catalog

RELAY TIME DELAY 1200HR 5A 250V

Part	Voltage - Supply	Delay Time [Min]	Delay Time [Max]	Function	Relay Type	Mounting Type	Termination Style	Circuit	Contact Rating @ Voltage	Timing Adjustment Method	Timing Initiate Method	Voltage - Supply [Min]	Voltage - Supply [Max]

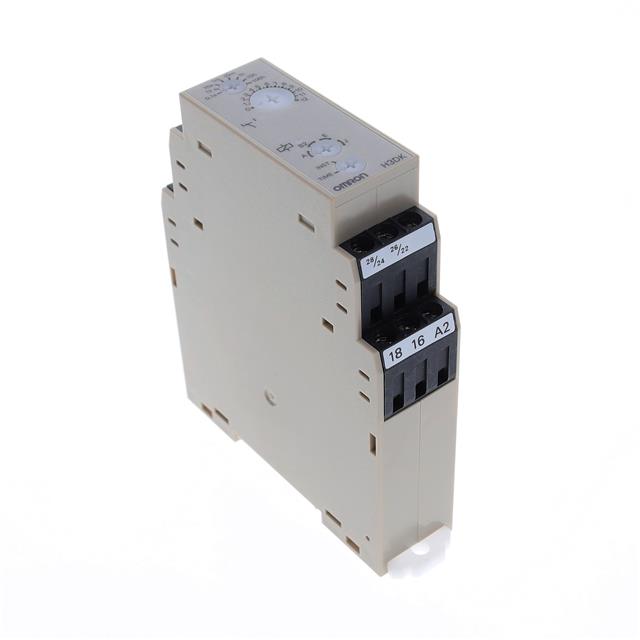

Omron Electronics Inc-EMC Div H3DK-S2A DC12	12 VDC	0.1 Sec	1200 Hrs	Programmable (Multi-Function)	Mechanical Relay	DIN Rail	Screw Terminal	DPDT (2 Form C)	5 A 250 VAC	Screwdriver Slot	Input Voltage
Omron Electronics Inc-EMC Div H3DK-S1 AC/DC24-240		0.1 Sec	1200 Hrs	Programmable (Multi-Function)	Mechanical Relay	DIN Rail	Screw Terminal		5 A 250 VAC	Screwdriver Slot	Input Voltage	24 VAC	240 VAC
Omron Electronics Inc-EMC Div H3DK-S1A DC12	12 VDC	0.1 Sec	1200 Hrs	Programmable (Multi-Function)	Mechanical Relay	DIN Rail	Screw Terminal		5 A 250 VAC	Screwdriver Slot	Input Voltage
