KAE05 Series

Manufacturer: E-Switch

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Length	Length [x]	Electrical Life	Mechanical Life	Mounting Type	Washable	Contact Material	Current Rating (Amps)	Circuit	Actuator Level	Voltage Rating	Height Above Board	Height Above Board	Termination Style	Contact Finish	Actuator Type	Pitch	Pitch	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Features
E-Switch KAE05LAGT	13.74 mm	0.541 in	2000 Steps	2000 Cycles	Through Hole		Copper	25 mA	SPST	Raised	24 VDC	0.169 in	4.3 mm	PC Pin	Gold	Slide (Standard)	2.54 mm	0.1 "	5	85 °C	-20 ░C

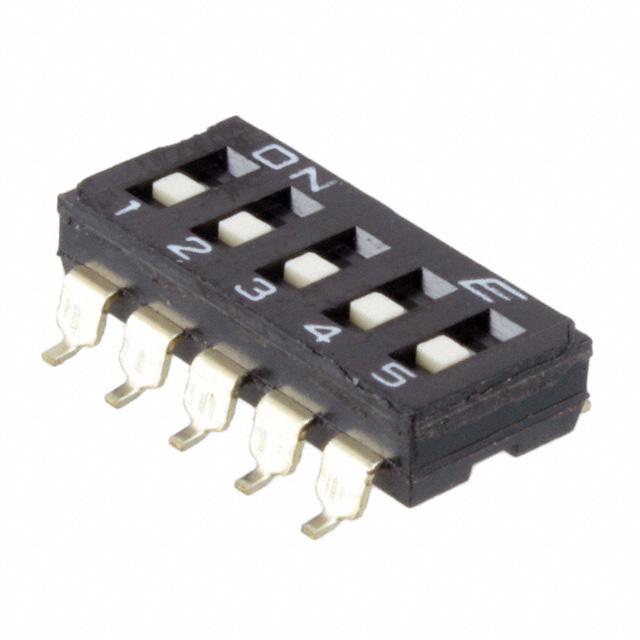

E-Switch KAE05TGGT	13.74 mm	0.541 in	2000 Steps	2000 Cycles	Surface Mount		Copper	25 mA	SPST	Flush Recessed	24 VDC			Gull Wing	Gold	Slide (Standard)	2.54 mm	0.1 "	5	85 °C	-20 ░C	0.148 in	3.75 mm	Tape Seal
