846-078 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 78POS 0.125

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Pitch	Pitch	Color	Number of Positions	Gender	Contact Type	Termination	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Card Type	Contact Material	Mounting Type	Features
EDAC Inc. 846-078-520-803	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Solder	2	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole
EDAC Inc. 846-078-540-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Wire Wrap	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole
EDAC Inc. 846-078-522-804	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Solder	2		0.156 "	3.96 mm	0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole
EDAC Inc. 846-078-558-807	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Solder	2	M3 Threaded Insert Top Mount Opening			0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Right Angle Through Hole
EDAC Inc. 846-078-526-208	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Solder	2	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole
EDAC Inc. 846-078-540-802	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Wire Wrap	2		0.128 "	3.25 mm	0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole

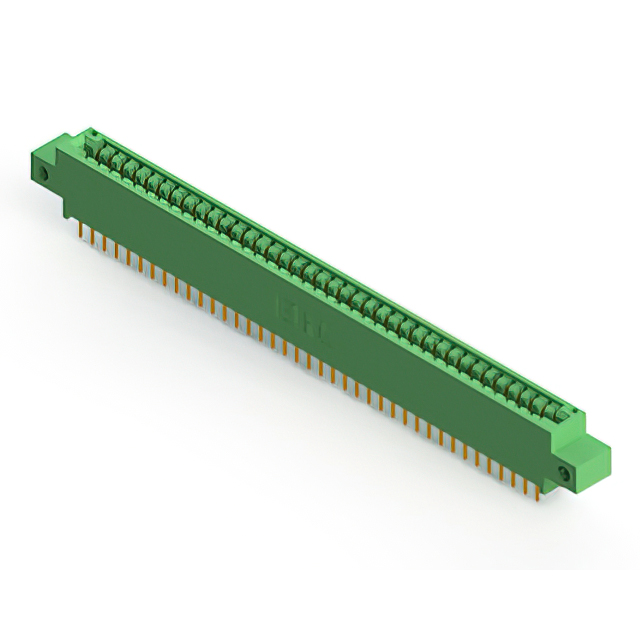

EDAC Inc. 846-078-521-812	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Solder	2	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole
EDAC Inc. 846-078-541-807	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Wire Wrap	2	M3 Threaded Insert Top Mount Opening			0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole

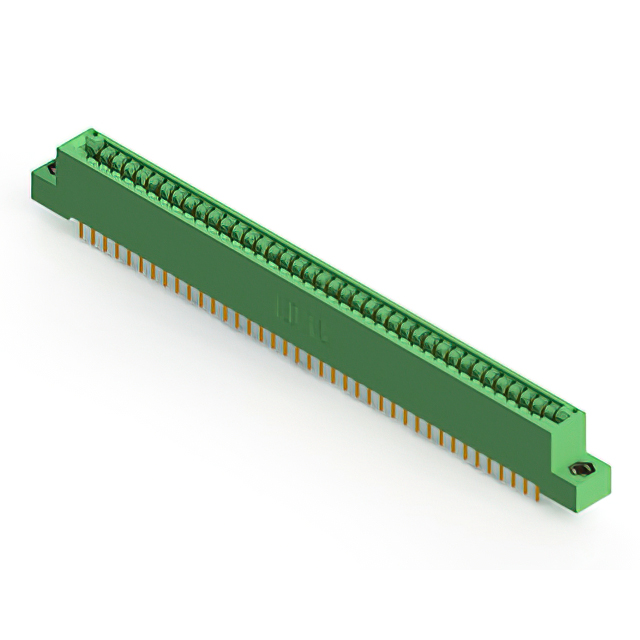

EDAC Inc. 846-078-521-208	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Solder	2	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Through Hole
EDAC Inc. 846-078-560-807	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.18 mm	0.125 in	Green	78	Female	Cantilever	Solder	2	M3 Threaded Insert Top Mount Opening			0.25 Ám	10 Áin	39	125 °C	-40 C	Dual	Non Specified - Dual Edge	Copper Alloy	Board Edge Straddle Mount	Card Extender
