5120.2306 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

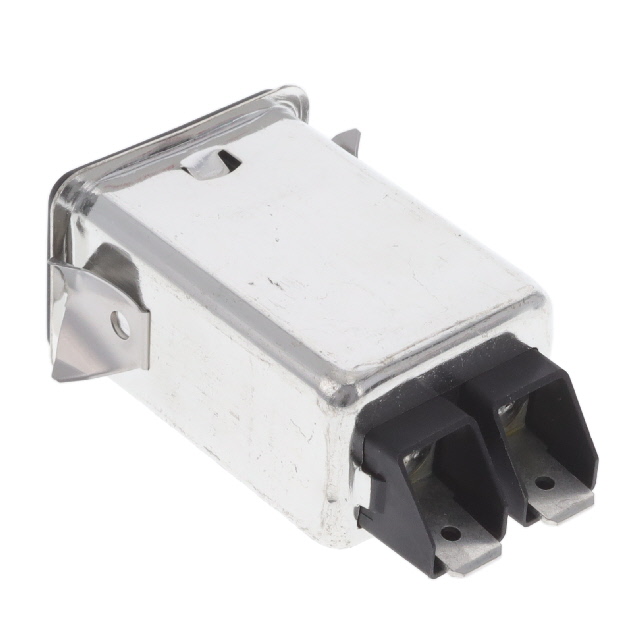

PWR ENT RCPT IEC320-C18 PANEL QC
| Part | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Current Rating - Appliance Inlet | Termination | Termination | Termination | Current Rating - Filter | Connector Type | Filter Type | Accomodates a Fuse | Connector Style | Number of Positions | Mounting Type | Voltage Rating - Appliance Inlet | Approval Agency | Material Flammability Rating | Ingress Protection | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.79 mm | 0.079 " | 0.031 " | 2 mm | 10 A | 6.3 mm | Quick Connect | 0.25 " | 10 A | Receptacle Male Blades | Filtered (EMI RFI) - Commercial Medical | IEC 320-C18 | 2 | Panel Mount Snap-In | 250 VAC | CCC cULus ENEC | UL94 V-0 | IP40 | 29.4 mm | 21.5 mm | Shielded |
