201196 Series
Spot-On Wire-to-Board Receptacle Housing, 2.00mm Pitch, Dual Row, 18 Circuits, Black
Manufacturer: Molex
Catalog
Spot-On Wire-to-Board Receptacle Housing, 2.00mm Pitch, Dual Row, 18 Circuits, Black
Beta
⌘K
Spot-On Wire-to-Board Receptacle Housing, 2.00mm Pitch, Dual Row, 18 Circuits, Black
Spot-On Wire-to-Board Receptacle Housing, 2.00mm Pitch, Dual Row, 18 Circuits, Black
Spot-On Wire-to-Board Receptacle Housing, 2.00mm Pitch, Dual Row, 18 Circuits, Black
| Part | Number of Positions | Accessory Type | For Use With/Related Products | Pitch [x] | Pitch [x] | Number of Rows | Contact Type | Fastening Type | Note | Contact Termination | Color | Insulation Material | Mounting Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

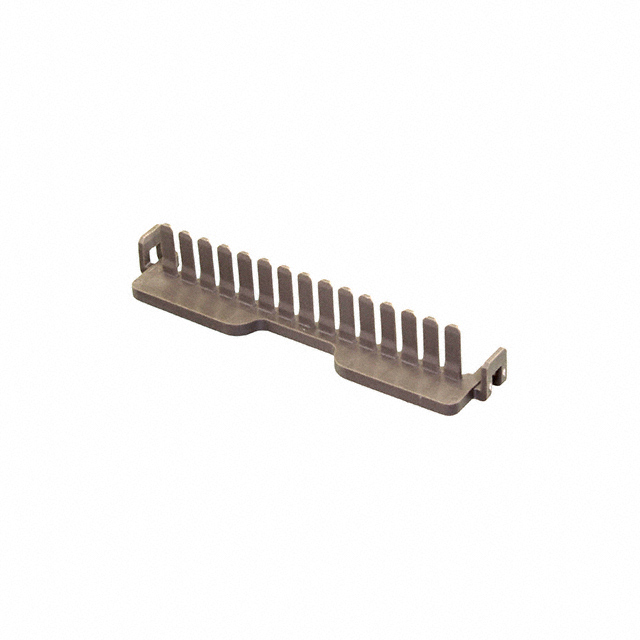

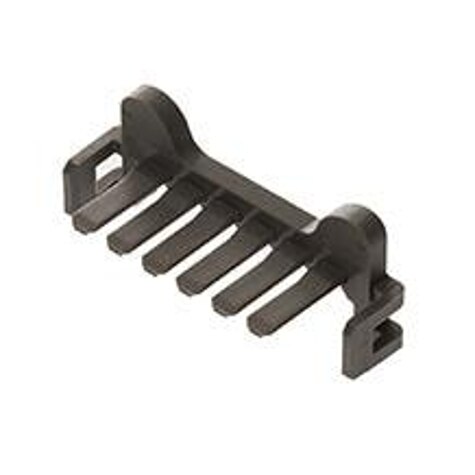

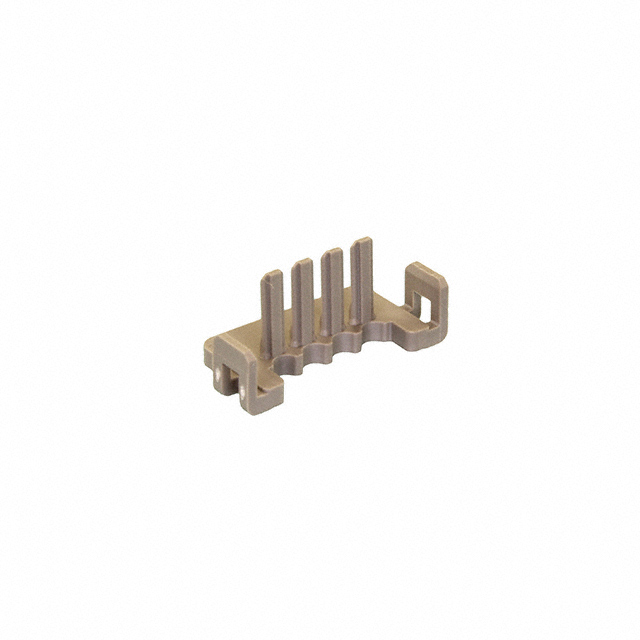

 Molex | 4 | Terminal Position Assurance (TPA) | 201196 201200 Series | |||||||||||||

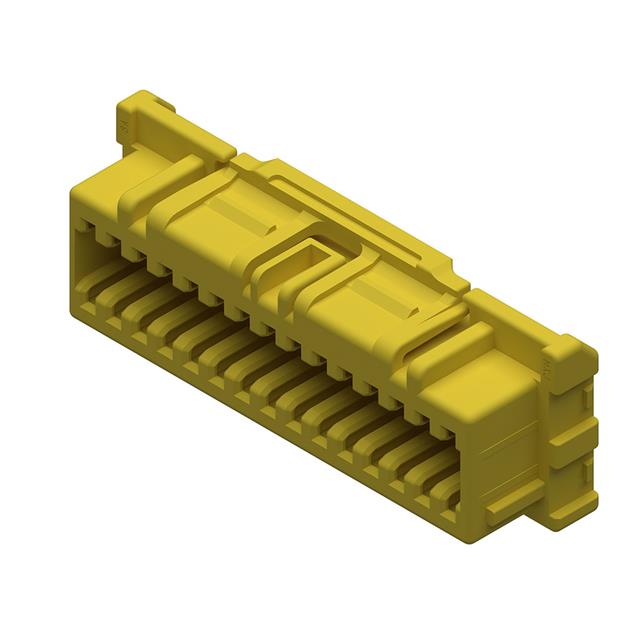

 Molex | 20 | 0.079 in | 2 mm | 2 | Female Socket | Latch Lock | Contacts Not Included | Crimp | Yellow | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | Receptacle | -40 °C | 105 ░C | ||

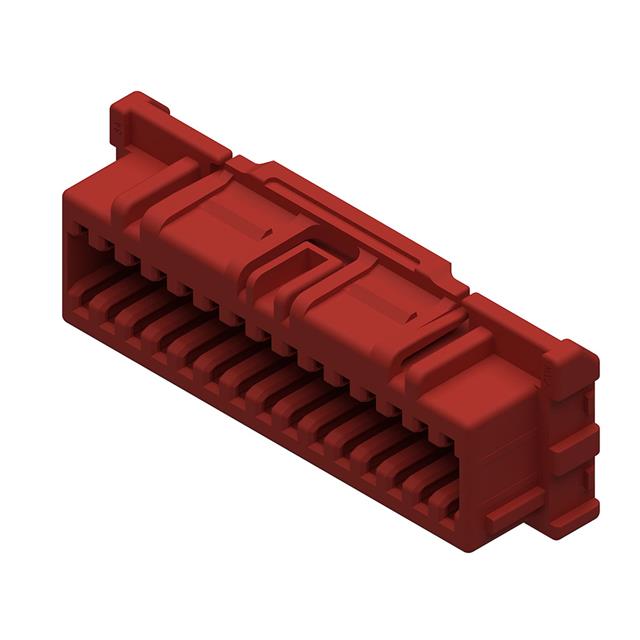

 Molex | 10 | 0.079 in | 2 mm | 2 | Female Socket | Latch Lock | Contacts Not Included | Crimp | Red | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | Receptacle | -40 °C | 105 ░C | ||

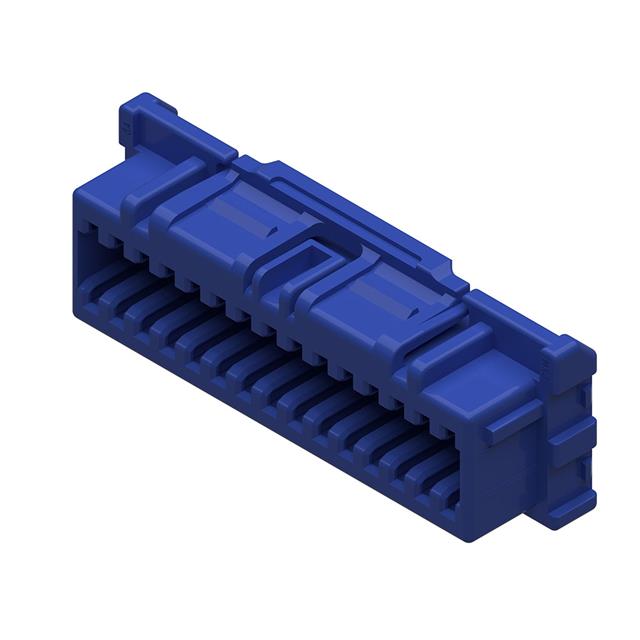

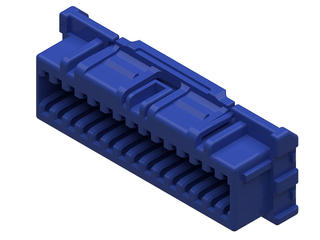

 Molex | 20 | 0.079 in | 2 mm | 2 | Female Socket | Latch Lock | Contacts Not Included | Crimp | Blue | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | Receptacle | -40 °C | 105 ░C | ||

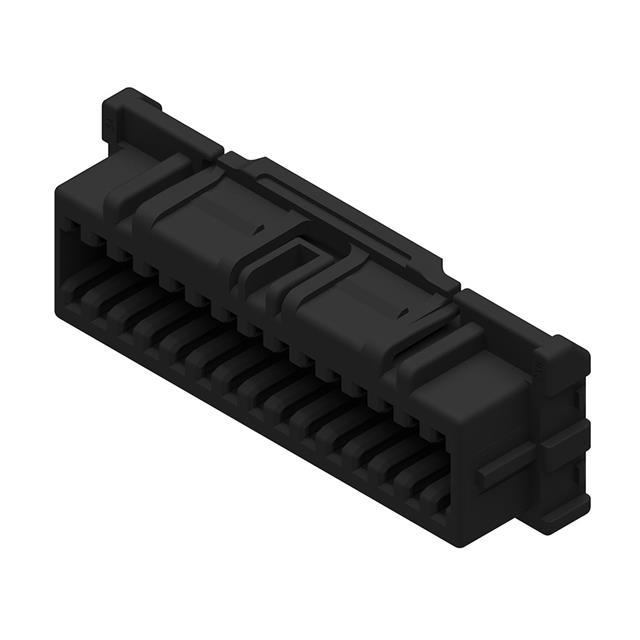

 Molex | 14 | 0.079 in | 2 mm | 2 | Female Socket | Latch Lock | Contacts Not Included | Crimp | Black | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | Receptacle | -40 °C | 105 ░C | ||
 Molex | 7 | Terminal Position Assurance (TPA) | 201196 201200 Series | |||||||||||||
Molex | 11 | Terminal Position Assurance (TPA) | 201196 201200 Series | |||||||||||||
 Molex | 36 | 0.079 in | 2 mm | 2 | Female Socket | Latch Lock | Contacts Not Included | Crimp | Blue | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | Receptacle | -40 °C | 105 ░C | ||
 Molex | 15 | Terminal Position Assurance (TPA) | 201196 201200 Series | |||||||||||||
Molex | 10 | 0.079 in | 2 mm | 2 | Female Socket | Latch Lock | Contacts Not Included | Crimp | Yellow | Polybutylene Terephthalate (PBT) Polyester | Free Hanging (In-Line) | Receptacle | -40 °C | 105 ░C |
