TR9CE5000 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 60W

Part	No Load Power Consumption	Cord Length	Cord Length	Region Utilized	Power (Watts)	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Output Connector [x]	Output Connector [diameter]	Output Connector	Polarization	Current - Output (Max)	Input Connector	Form	Voltage - Output	Input Type	Applications	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency

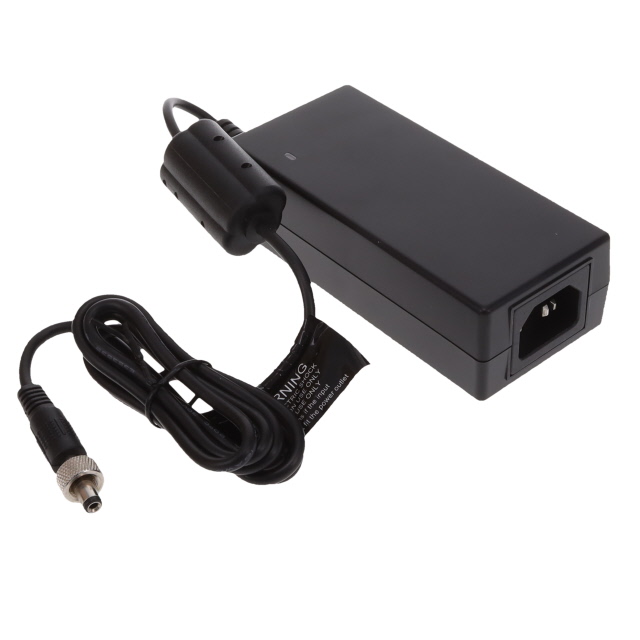

GlobTek, Inc. TR9CE5000S760KIMR6B	150 mW	1.2 m	47.2 in	International	60 W	60335-1 60601-1 60950-1 62368-1	-20 ░C	40 °C	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	11 mm	2.1 mm 5.5 mm	Barrel Plug	Positive Center	5 A	IEC 320-C14	Desktop (Class I)	12 V	Cord (Sold Separately)	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	CoC Tier 1 Level VI

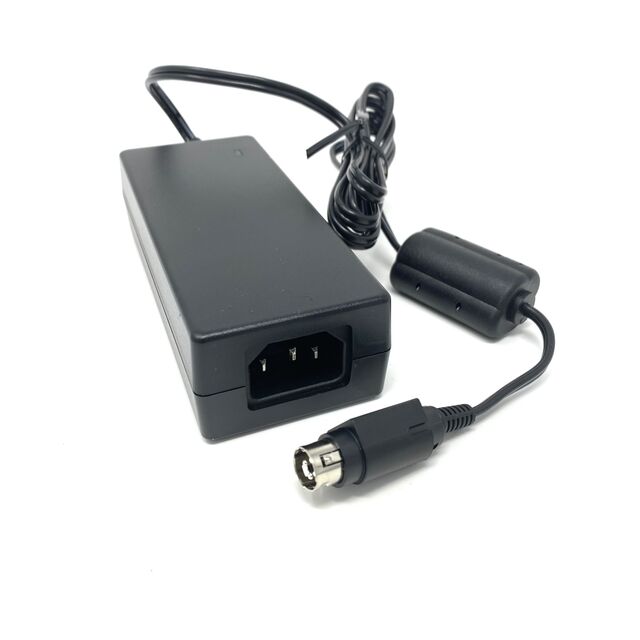

GlobTek, Inc. TR9CE5000YL4-N(R6B)	150 mW	1.2 m	47.2 in	International	60 W		0 °C	40 °C	33 mm	1.3 in	52 mm	4.76 "	121 mm	2.05 in			Power DIN 4 Pin		5 A	IEC 320-C14	Desktop (Class I)	12 V	Cord (Sold Separately)	Household Appliances ITE (Commercial)	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UkrSEPRO VCCI	264 VAC	90 VAC	CoC Tier 2 Level VI

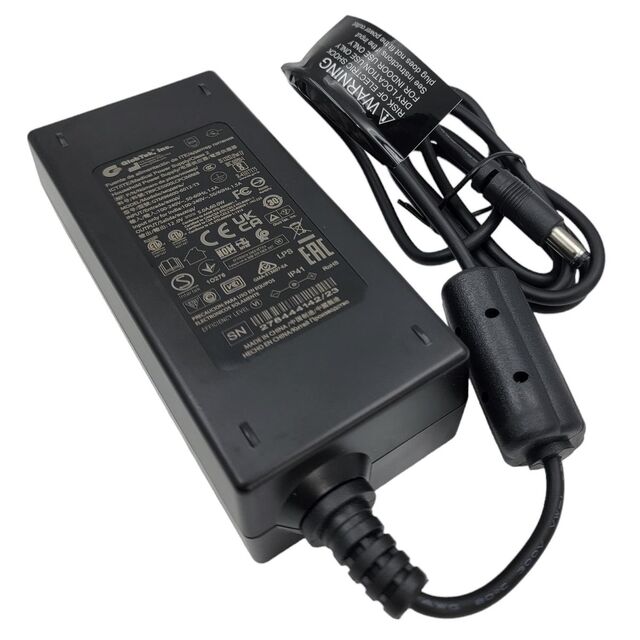

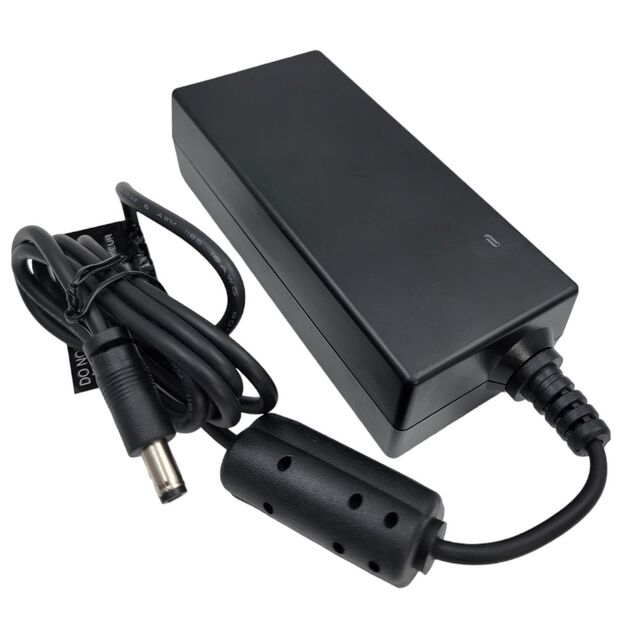

GlobTek, Inc. TR9CE5000LCPCIMR6B	150 mW	1.2 m	47.2 in	International	60 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 ░C	40 °C	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	11 mm	2.5 mm 5.5 mm	Barrel Plug	Positive Center	5 A	IEC 320-C14	Desktop (Class I)	12 V	Cord (Sold Separately)	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	Level VI

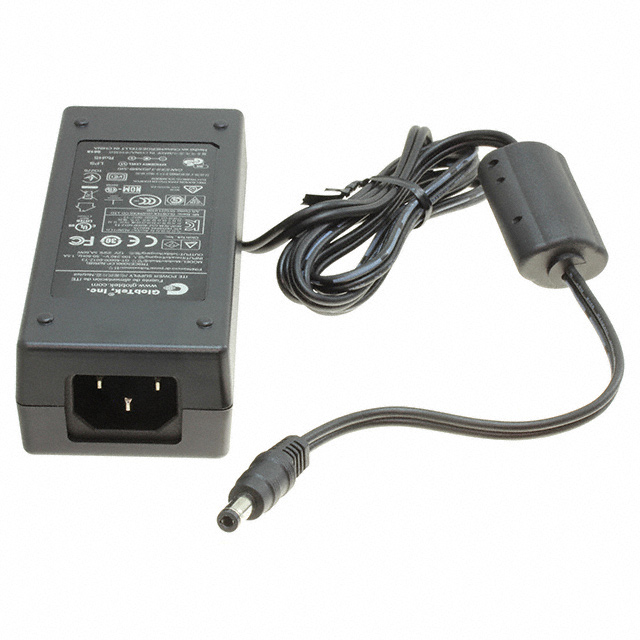

GlobTek, Inc. TR9CE5000LCP-N(R6B)	150 mW	1.2 m	47.2 in	International	60 W	60335-1 60950-1	0 °C	40 °C	33 mm	1.3 in	52 mm	4.76 "	121 mm	2.05 in	11 mm	2.5 mm 5.5 mm	Barrel Plug	Positive Center	5 A	IEC 320-C14	Desktop (Class I)	12 V	Cord (Sold Separately)	Household Appliances ITE (Commercial)	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UkrSEPRO VCCI	264 VAC	90 VAC	Level VI

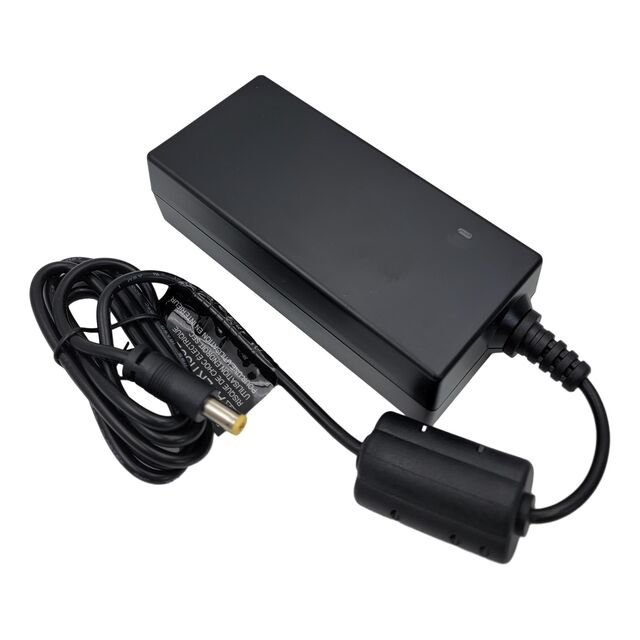

GlobTek, Inc. TR9CE5000CCPCIMR6B	150 mW	1.2 m	47.2 in	International	60 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 ░C	40 °C	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	11 mm	2.1 mm 5.5 mm	Barrel Plug	Positive Center	5 A	IEC 320-C14	Desktop (Class I)	12 V	Cord (Sold Separately)	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	Level VI
