T140D Series

Manufacturer: KEMET

Catalog

330.UF 15.0V ROHS COMPLIANT: NO

Part	Package / Case	Qualification	Mounting Type	Size / Dimension [x]	Size / Dimension [diameter]	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Features	Grade	ESR (Equivalent Series Resistance)	Tolerance	Voltage - Rated	Type	Capacitance	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]
KEMET T140D337K015AS	Axial	MIL-PRF-39003/3	Through Hole	0.351 in 8.92 mm	0.351 in 8.92 mm	D	-55 C	125 °C	General Purpose	Military	400 mOhm	10 %	15 V	Hermetically Sealed	330 µF
KEMET T140D107K030AT	Axial	MIL-PRF-39003/3	Through Hole	0.351 in 8.92 mm	0.351 in 8.92 mm	D	-55 C	125 °C	General Purpose	Military	500 mOhm	10 %	30 V	Hermetically Sealed	100 µF

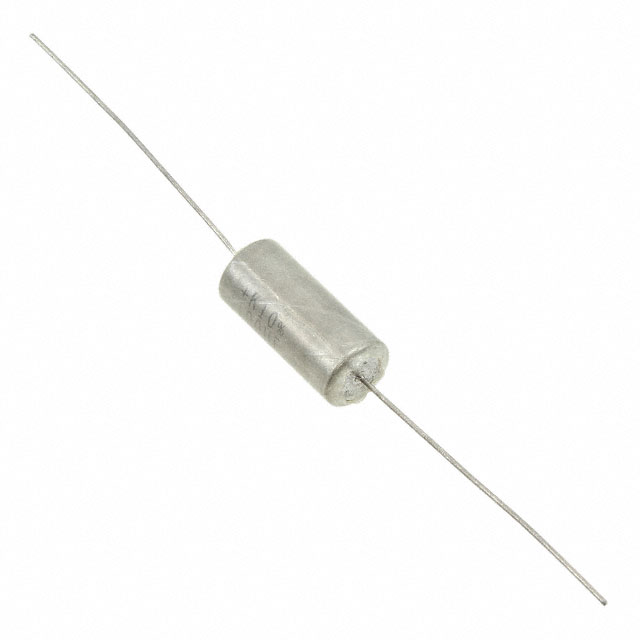

KEMET T140D107K035AS	Axial		Through Hole		8.92 mm	D	-55 C	125 °C	General Purpose		500 mOhms	10 %	35 V	Hermetically Sealed	100 µF	19.96 mm	0.786 in	0.351 "
KEMET T140D108K006AS	Axial	MIL-PRF-39003/3	Through Hole		8.92 mm	D	-55 C	125 °C	General Purpose	Military	120 mOhm	10 %	6 VDC	Hermetically Sealed	1000 µF	19.96 mm	0.786 in	0.351 "
KEMET T140D107K030AS	Axial	MIL-PRF-39003/3	Through Hole	0.351 in 8.92 mm	0.351 in 8.92 mm	D	-55 C	125 °C	General Purpose	Military	500 mOhm	10 %	30 V	Hermetically Sealed	100 µF

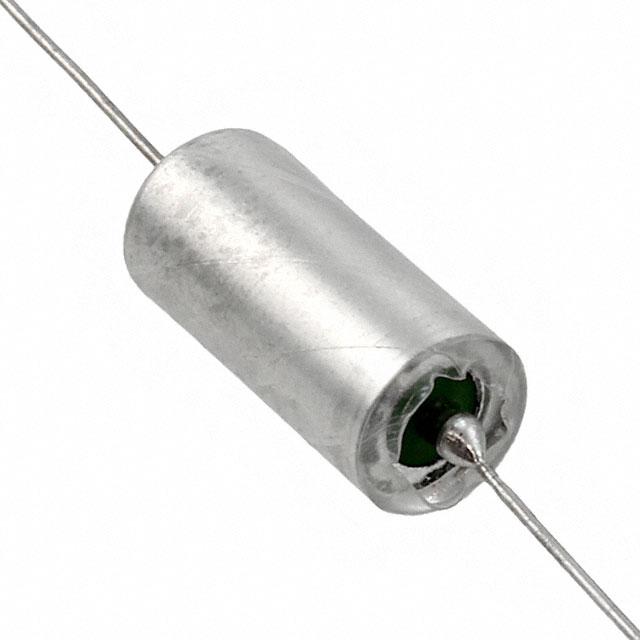

KEMET T140D476K050AT	Axial		Through Hole		8.92 mm	D	-55 C	125 °C	General Purpose		600 mOhm	10 %	50 VDC	Hermetically Sealed	47 µF	19.96 mm	0.786 in	0.351 "
KEMET T140D686K035AS	Axial		Through Hole		8.92 mm	D	-55 C	125 °C	General Purpose		600 mOhm	10 %	35 V	Hermetically Sealed	68 µF	19.96 mm	0.786 in	0.351 "
