MAX17227 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC REG BOOST ADJ 500MA 6WLP

Part	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Function	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Output Configuration	Current - Output	Voltage - Output (Min/Fixed) [Min]	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Output Type	Utilized IC / Part	Board Type	Main Purpose	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Output	Supplier Device Package [y]	Supplier Device Package [x]
Analog Devices Inc./Maxim Integrated MAX17227JANT+T	1	6-XFBGA WLBGA	5.5 V	Surface Mount	Step-Up	-40 °C	125 ¯C	Boost	Positive	500 mA	2.3 V	6-WLP (1.58x.89)	0.4 V	5.4 V	Adjustable

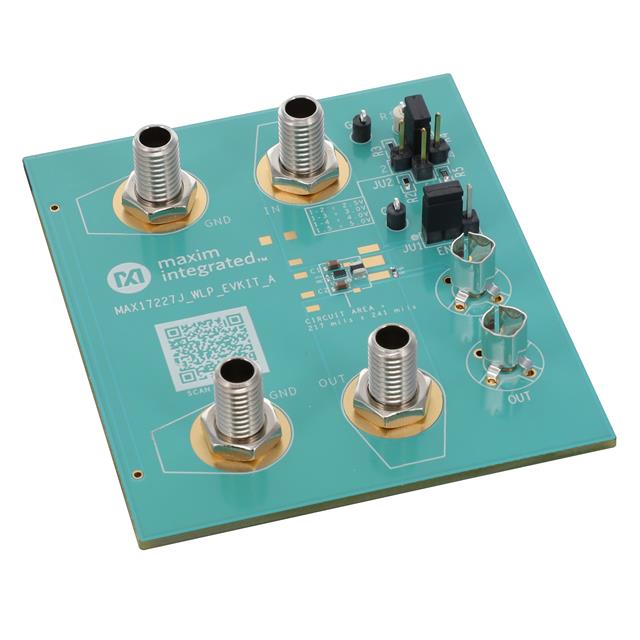

Analog Devices Inc./Maxim Integrated MAX17227JEVK#WLP										300 mA						MAX17227J	Fully Populated	DC/DC Step Up	Boost	5.5 V	0.4 V	Board(s)	Non-Isolated	1	5 V
Analog Devices Inc./Maxim Integrated MAX17227JANT+	1	6-XFBGA WLBGA	5.5 V	Surface Mount	Step-Up	-40 °C	125 ¯C	Boost	Positive	500 mA	2.3 V	6-WLP (1.58x.89)	0.95 V	5.4 V	Adjustable

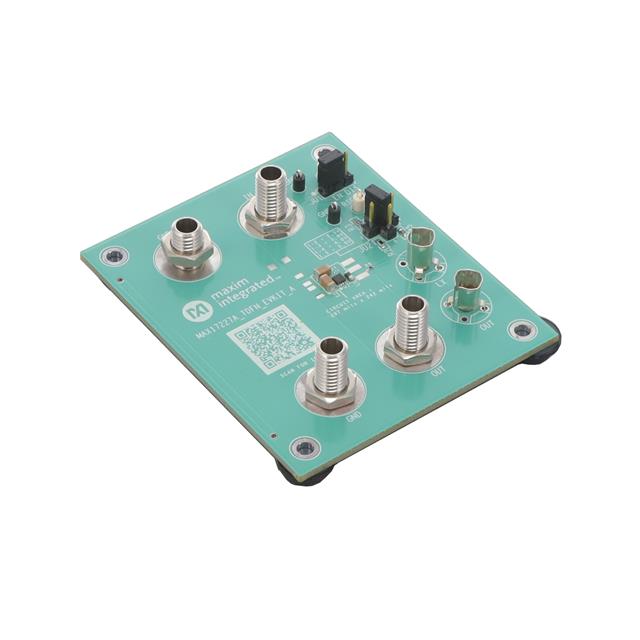

Analog Devices Inc./Maxim Integrated MAX17227AEVK#TDFN										1 A						MAX17227A	Fully Populated	DC/DC Step Up	Boost	5.5 V	0.4 V	Board(s)	Non-Isolated	1	3 V

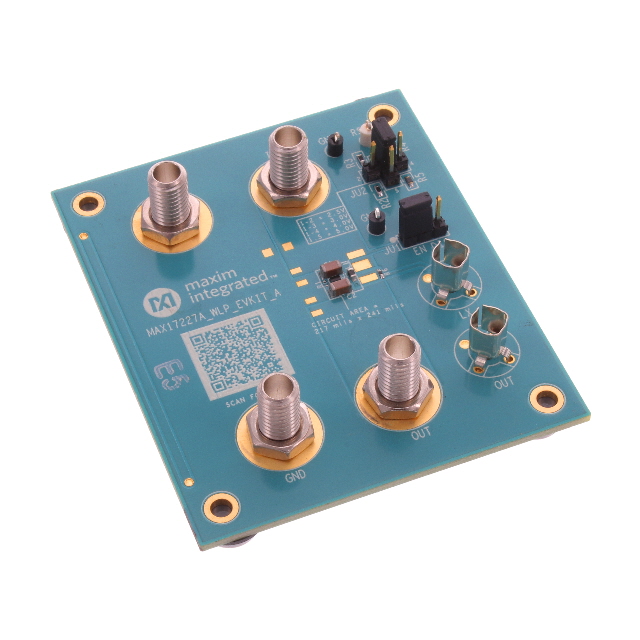

Analog Devices Inc./Maxim Integrated MAX17227AEVK#WLP										1 A						MAX17227A	Fully Populated	DC/DC Step Up	Boost	5.5 V	0.4 V	Board(s)	Non-Isolated	1	3 V
Analog Devices Inc./Maxim Integrated MAX17227AANT+	1		5.5 V	Surface Mount	Step-Up	-40 °C	125 ¯C	Boost	Positive	2 A	2.3 V	6-WLP	0.4 V	5.5 V	Adjustable											0.89	1.58
Analog Devices Inc./Maxim Integrated MAX17227JATA+T	1	8-WFDFN Exposed Pad	5.5 V	Surface Mount	Step-Up	-40 °C	125 ¯C	Boost	Positive	500 mA	2.3 V	8-TDFN-EP (2x2)	0.4 V	5.2 V	Adjustable
Analog Devices Inc./Maxim Integrated MAX17227BATA+T
