88886 Series

Catalog

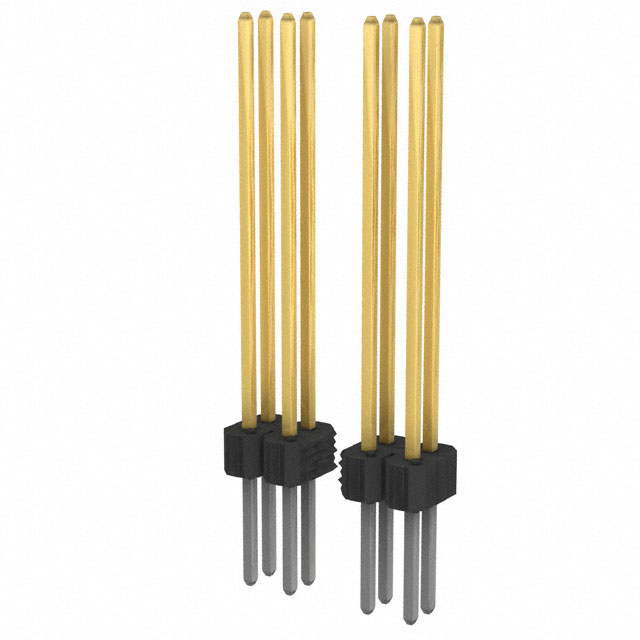

CONN HEADER VERT 72POS 2.54MM

Part	Number of Rows	Contact Material	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Type	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Shrouding	Connector Type	Termination	Contact Finish - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Finish - Post
Amphenol ICC (FCI) 88886-272H	2	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	0.1 in	2.54 mm	15 µin	0.38 µm	0.276 in	7.01 mm	33.17 mm	1.306 in	Male Pin	Square	All	UL94 V-0	Push-Pull	Unshrouded	Header	Solder	Gold or Gold GXT™	Black	0.93 in	23.62 mm	72
Amphenol ICC (FCI) 88886-272HLF	2	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	0.1 in	2.54 mm	15 µin	0.38 µm	0.276 in	7.01 mm	33.17 mm	1.306 in	Male Pin	Square	All	UL94 V-0	Push-Pull	Unshrouded	Header	Solder	Gold or Gold GXT™	Black	0.93 in	23.62 mm	72
Amphenol ICC (FCI) 88886-172HLF	2	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	0.1 in	2.54 mm	30 Áin	0.76 Ám	0.276 in	7.01 mm	33.17 mm	1.306 in	Male Pin	Square	All	UL94 V-0	Push-Pull	Unshrouded	Header	Solder	Gold or Gold GXT™	Black	0.93 in	23.62 mm	72
Amphenol ICC (FCI) 88886-412HLF	2	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	0.1 in	2.54 mm	100 çin	2.54 çm	0.276 in	7.01 mm	33.17 mm	1.306 in	Male Pin	Square	All	UL94 V-0	Push-Pull	Unshrouded	Header	Solder		Black	0.93 in	23.62 mm	12	Tin
