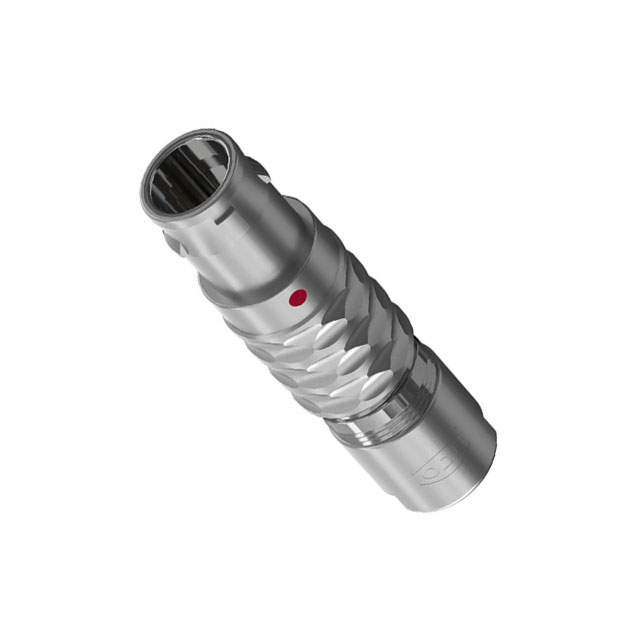

S1CL0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 3P GOLD SLDR CUP
| Part | Primary Material | Insert Material | Contact Finish - Mating | Mounting Type | Shell Finish | Contact Material | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Shell Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Backshell Material, Plating | Shell Size - Insert | Fastening Type | Applications | Ingress Protection | Orientation | Current Rating (Amps) | Features | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | |||
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.02 in | 0.039 in | 1 mm | 0.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | Shielded | ||
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.039 in | 0.059 in | 1.5 mm | 1 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | Shielded | 4 | |
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.079 in 2 mm | 0.098 in 2.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | 2 | ||||
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.059 " | 0.079 " | 2 mm | 1.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | Shielded | 4 | |
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.079 in 2 mm | 0.098 in 2.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | 4 | ||||
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | 4 | ||
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | 2 | ||
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.02 in | 0.039 in | 1 mm | 0.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | Shielded | 2 | |
Metal | Polyetheretherketone (PEEK) | Gold | Free Hanging (In-Line) | Chrome over Nickel | Brass | 0.059 " | 0.079 " | 2 mm | 1.5 mm | Brass | Silver | 120 °C | -40 C | Plug Male Pins | Brass Chrome over Nickel | 00 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP50 - Dust Protected | 0 | 4 A | Backshell | Shielded |
