MGS302412 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K

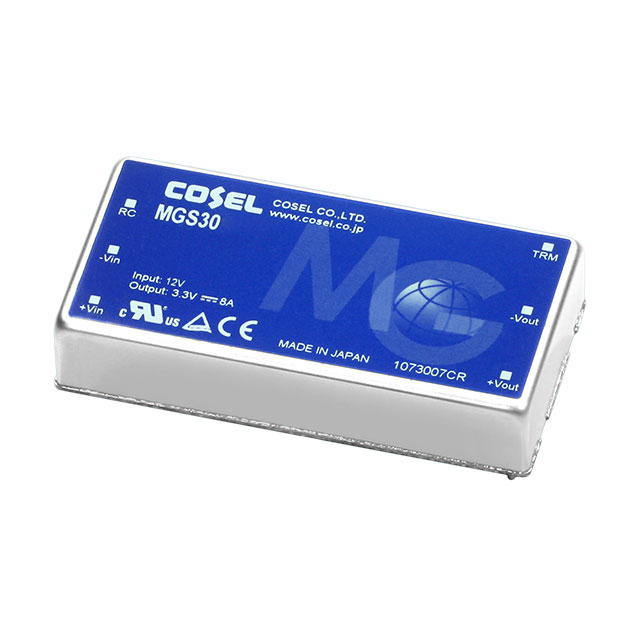

DC DC CONVERTER 12V 30W
| Part | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Isolation | Applications | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Power (Watts) | Number of Outputs | Mounting Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 6-DIP Module | 0.39 " | 50.8 mm | 25.4 mm | 2 in | 1 " | 9.9 mm | 18 V | 2.5 A | 36 V | 1.5 kV | ITE (Commercial) | Isolated Module | -40 °C | 85 °C | 12 V | 30 Watts | 1 | Through Hole | 92 % |
Cosel USA, Inc. | 6-DIP Module | 0.39 " | 50.8 mm | 25.4 mm | 2 in | 1 " | 9.9 mm | 18 V | 2.5 A | 36 V | 1.5 kV | ITE (Commercial) | Isolated Module | -40 °C | 85 °C | 12 V | 30 Watts | 1 | Through Hole | 92 % |
