MOLC-120 Series

Headers & Wire Housings .050" FOURRAY Quad Row Terminal Strip

Catalog

Headers & Wire Housings .050" FOURRAY Quad Row Terminal Strip

Part	Contact Shape	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Mated Stacking Heights	Shrouding	Contact Material	Contact Finish - Post	Current Rating (Amps)	Contact Type	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Contact Finish - Mating	Mounting Type	Connector Type	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Features

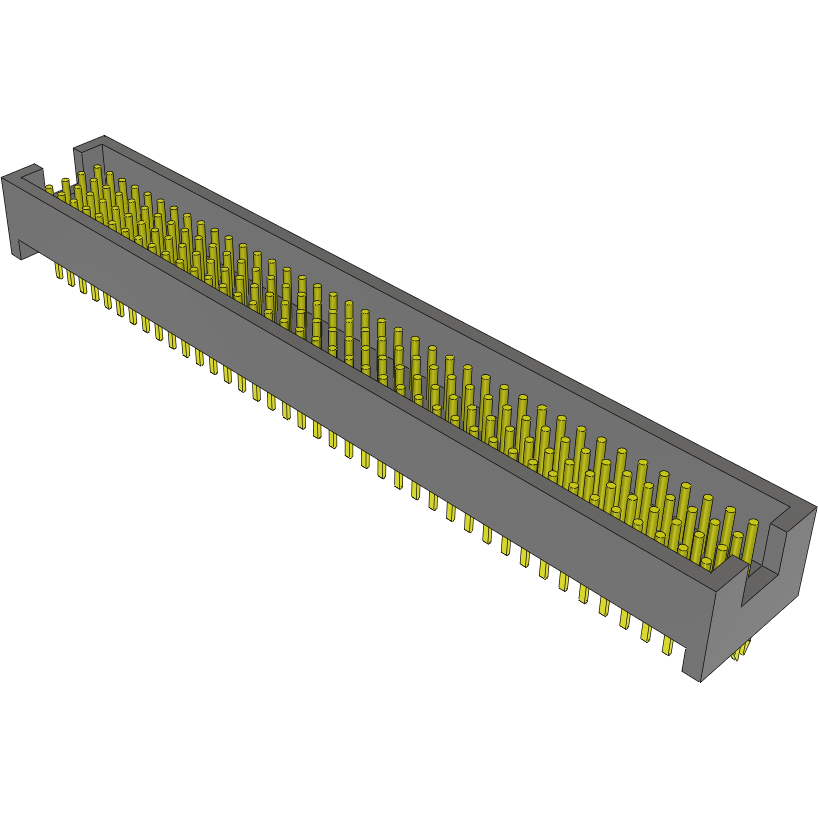

Samtec Inc. MOLC-140-01-S-Q-LC	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull	5.97 mm	Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.6 mm	0.22 in	3.38 mm	0.133 in	30 Áin	0.76 Ám	Solder	Black	Gold	Through Hole	Header	0.075 in	1.91 mm	0.05 in	1.27 mm
Samtec Inc. MOLC-120-02-S-Q-P	Square	80	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Pick and Place
Samtec Inc. MOLC-130-02-S-Q-P-TR	Square	120	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Pick and Place
Samtec Inc. MOLC-140-02-S-Q-P	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Pick and Place

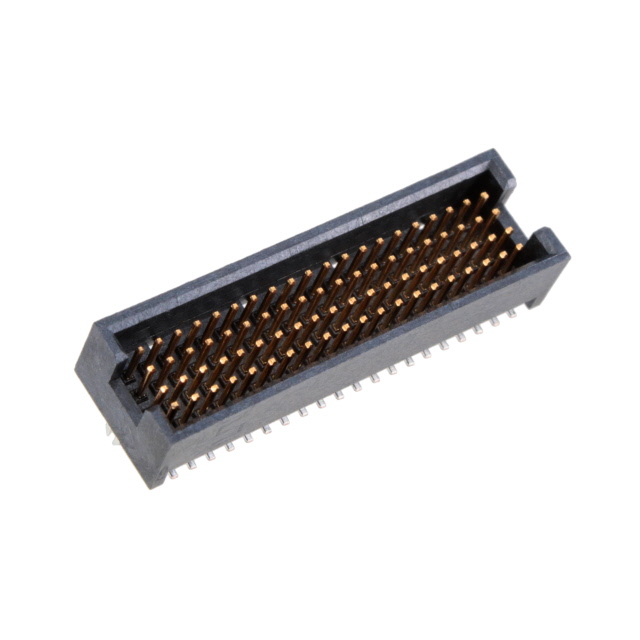

Samtec Inc. MOLC-120-M1-L-Q-LC	Square	80	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.6 mm	0.22 in	3.38 mm	0.133 in	10 çin	0.25 çm	Solder	Black	Gold	Surface Mount Through Hole	Header	0.075 in	1.91 mm	0.05 in	1.27 mm
Samtec Inc. MOLC-140-02-S-Q-LC-P	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Board Lock Pick and Place
Samtec Inc. MOLC-120-02-S-Q	Square	80	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in

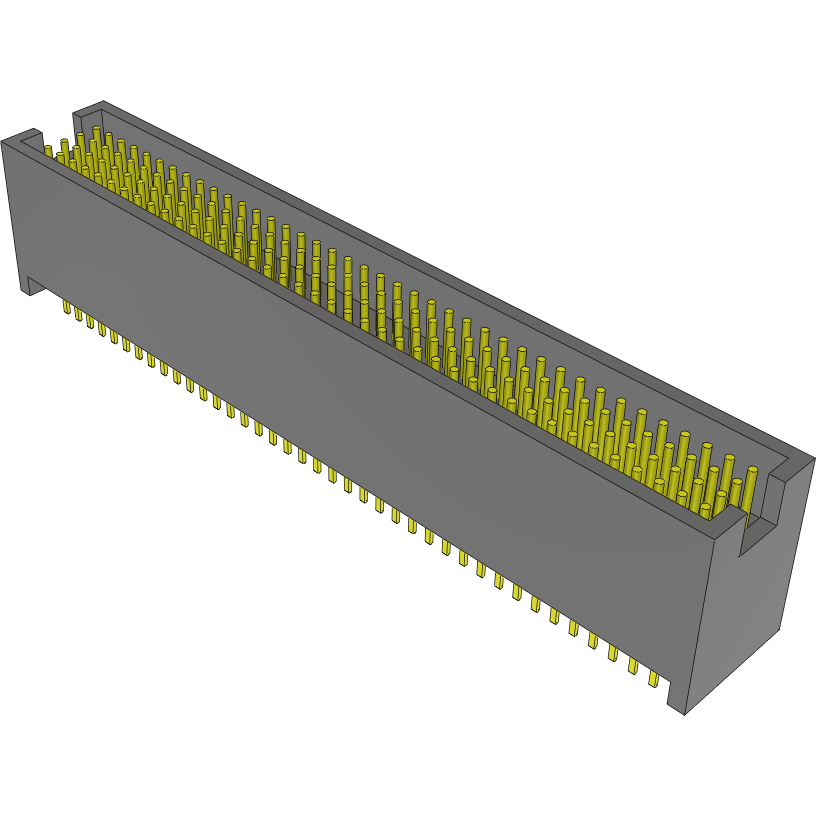

Samtec Inc. MOLC-140-31-S-Q	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull	11.43 mm	Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	11.05 mm	0.435 in	3.66 mm	0.144 in	30 Áin	0.76 Ám	Solder	Black	Gold	Through Hole	Header	0.075 in	1.91 mm	0.05 in	1.27 mm
Samtec Inc. MOLC-140-02-S-Q	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in
Samtec Inc. MOLC-145-02-S-Q-LC-P	Square	180	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Board Lock Pick and Place
