SMKDSN Series

Catalog

FIXED TERMINAL BLOCKS SMKDSN1.5/ 3-5,08 BK

Part	Current	Number of Levels	Pitch	Pitch	Positions Per Level	Voltage	Mounting Type	Wire Termination	Color	Wire Gauge	Mating Orientation	Mating Orientation	Screw Thread	Housing Material	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Gauge [Max]	Wire Gauge [Min]
Phoenix Contact 1733855	10 A	1	5.08 mm	0.2 in	3	300 VDC	Through Hole	Screw - Rising Cage Clamp	Black	18 AWG	55 °	125 °

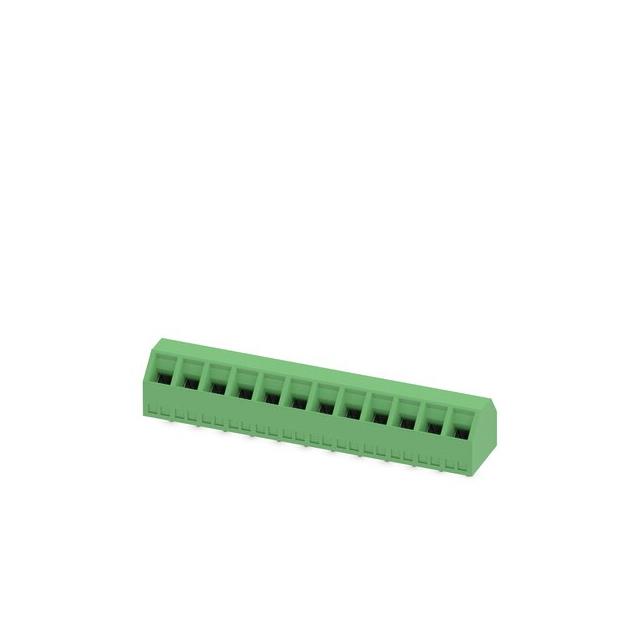

Phoenix Contact 1869169	10 A	1	5 mm	0.197 in	12	300 VDC	Through Hole	Screw - Rising Cage Clamp	Green		55 °	125 °	M3	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	30 AWG	14 AWG

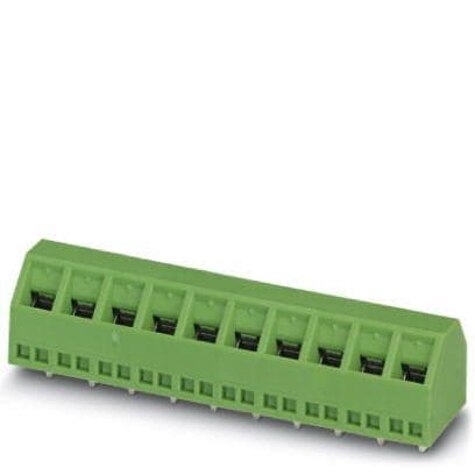

Phoenix Contact 1869143	10 A	1	5 mm	0.197 in	10	300 VDC	Through Hole	Screw - Rising Cage Clamp	Green		55 °	125 °							30 AWG	14 AWG

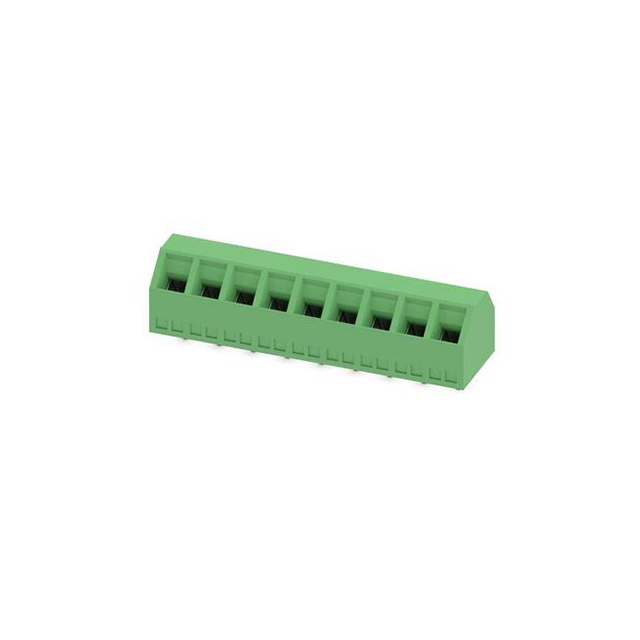

Phoenix Contact 1869130	10 A	1	5 mm	0.197 in	9	300 VDC	Through Hole	Screw - Rising Cage Clamp	Green		55 °	125 °	M3	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	30 AWG	14 AWG
