F32Q-1A7H1 Series

Catalog

CONN FFC FPC TOP 12POS 0.5MM R/A

Part	Housing Color	Actuator Color	Mating Cycles	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Features	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board	Height Above Board	Actuator Material	Cable End Type	Material Flammability Rating	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Connector/Contact Type	Contact Finish	Termination	Flat Flex Type	Mounting Type	Voltage Rating	Locking Feature	Contact Material	Housing Material	Number of Positions	FFC, FCB Thickness
Amphenol ICC (FCI) F32Q-1A7H1-11012	Natural	Black	30	0.5 A	1.97 Áin	0.05 Ám	0.02 "	0.5 mm	Solder Retention Zero Insertion Force (ZIF)	-40 C	105 ░C	2 mm	0.079 in	Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free	Straight	UL94 V-0	0.3 mm	0.33 mm	Contacts Top	Gold	Solder	FFC FPC	Right Angle Surface Mount	50 V	Slide Lock	Phosphor Bronze	Glass Filled Liquid Crystal Polymer (LCP)	12

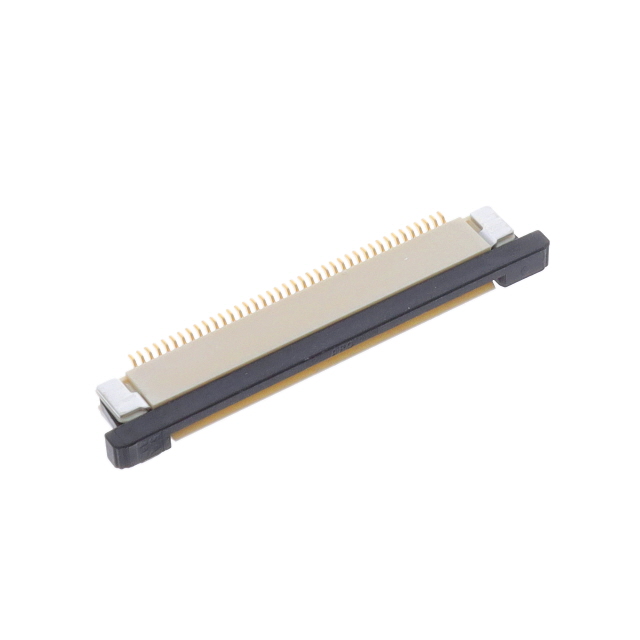

Amphenol ICC (FCI) F32Q-1A7H1-11040	Natural	Black	30	0.5 A	1.97 Áin	0.05 Ám	0.02 "	0.5 mm	Solder Retention Zero Insertion Force (ZIF)	-40 C	105 ░C	2 mm	0.079 in	Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free	Straight	UL94 V-0	0.3 mm	0.33 mm	Contacts Top	Gold	Solder	FFC FPC	Right Angle Surface Mount	50 V	Slide Lock	Phosphor Bronze	Glass Filled Liquid Crystal Polymer (LCP)	40
Amphenol ICC (FCI) F32Q-1A7H1-11010	Natural	Gray	30	0.5 A	1.97 Áin	0.05 Ám	0.02 "	0.5 mm	Solder Retention Zero Insertion Force (ZIF)	-40 C	105 ░C	2 mm	0.079 in	Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free	Straight	UL94 V-0			Contacts Top	Gold	Solder	FFC FPC	Right Angle Surface Mount	50 V	Slide Lock	Phosphor Bronze	Glass Filled Liquid Crystal Polymer (LCP)	10	0.33 mm
