74LVC1G74 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K

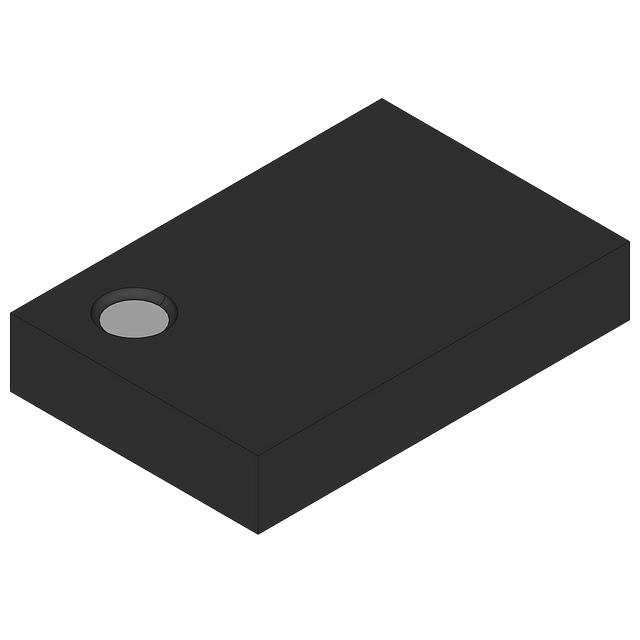

IC FF D-TYPE SNGL 1BIT 8XSON
| Part | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Quiescent (Iq) | Current - Output High, Low [y] | Current - Output High, Low [x] | Clock Frequency | Number of Elements | Number of Bits per Element | Function | Input Capacitance | Trigger Type | Mounting Type | Output Type | Max Propagation Delay @ V, Max CL | Grade | Supplier Device Package | Type | Package / Case [custom] | Package / Case | Package / Case [y] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | AEC-Q100 | -40 °C | 125 °C | 8-XFDFN | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | Automotive | 8-XSON (2x3) | D-Type | ||||
 Freescale Semiconductor - NXP | -40 °C | 125 °C | 8-XFDFN | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | 8-XSON (1.95x1) | D-Type | ||||||
 Freescale Semiconductor - NXP | -40 °C | 125 °C | 8-XFDFN | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | 8-XSON (1.2x1) | D-Type | ||||||
 Freescale Semiconductor - NXP | -40 °C | 125 °C | 8-XFQFN Exposed Pad | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | 8-XQFN (1.6x1.6) | D-Type | ||||||
 Freescale Semiconductor - NXP | AEC-Q100 | -40 °C | 125 °C | 8-MSOP 8-TSSOP | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | Automotive | 8-TSSOP | D-Type | 0.118 in | 3 mm | ||
 Freescale Semiconductor - NXP | -40 °C | 125 °C | 8-VFSOP | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | D-Type | 2.3 mm | 0.091 in | |||||
Freescale Semiconductor - NXP | -40 °C | 125 °C | 8-XFDFN | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | 8-XSON (2x3) | D-Type | ||||||
 Freescale Semiconductor - NXP | -40 °C | 125 °C | 8-XFDFN | 5.5 V | 1.65 V | 4 çA | 32 mA | 32 mA | 200 MHz | 1 | 1 | Reset Set(Preset) | 4 pF | Positive Edge | Surface Mount | Complementary | 4.1 ns | 8-XSON (1.35x1) | D-Type |
