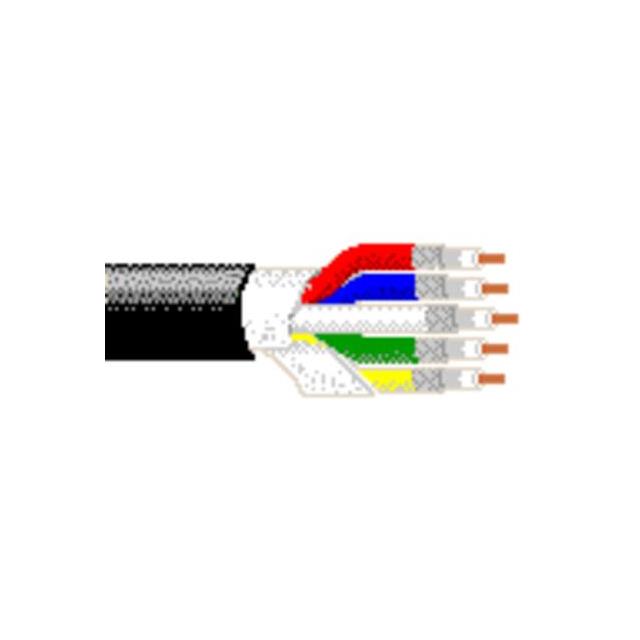

7712A Series
Manufacturer: Belden Inc.
Beta
⌘K
5 #18 PE SH PVC FRTPE
| Part | Shield Coverage | Shield Material | Cable Type | Usage | Shield Type | Voltage | Jacket Color | Ratings | Jacket (Insulation) Material | Conductor Strand | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Length | Length | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % 100 % | Aluminum Polyester Copper Tinned | Multi-Conductor | Video | Braid Foil | 300 VDC | Black | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | Solid | -40 C | 75 ░C | Polyethylene (PE) | 0.97 in | 24.64 mm | Copper Bare | 18 AWG | 152.4 m | 500 ft | 5 |
Belden Inc. | 95 % 100 % | Aluminum Polyester Copper Tinned | Multi-Conductor | Video | Braid Foil | 300 VDC | Black | UL Style CMR | Poly-Vinyl Chloride (PVC) Riser | Solid | -40 C | 75 ░C | Polyethylene (PE) | 0.97 in | 24.64 mm | Copper Bare | 18 AWG | 304.8 m | 1000 ft | 5 |
