ADS54RF63 Series

12-Bit, 550-MSPS, RF Sampling Analog-to-Digital Converter (ADC)

Catalog

12-Bit, 550-MSPS, RF Sampling Analog-to-Digital Converter (ADC)

Part	Mounting Type	Supplier Device Package	Input Type	Data Interface	Number of Inputs	Architecture	Ratio - S/H:ADC	Voltage - Supply, Analog	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Configuration	Number of Bits	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Reference Type	Package / Case	Number of A/D Converters	Sampling Rate (Per Second)	Utilized IC / Part	Supplied Contents	Input Range
Texas Instruments ADS54RF63IPFPR	Surface Mount	80-HTQFP (12x12)	Differential	Parallel	1	Pipelined	1:1	5 V	3 V	3.6 V	S/H-ADC	12 bits	85 °C	-40 °C	3.6 V	3 V	Internal	80-TQFP Exposed Pad	1	550M

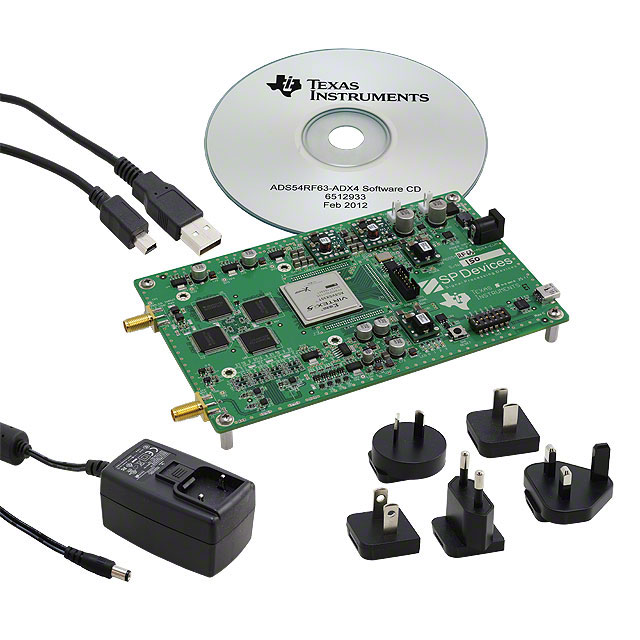

Texas Instruments ADS54RF63-ADX4												12 bits							4	550M	ADS54RF63	Board(s)	2.2 Vpp

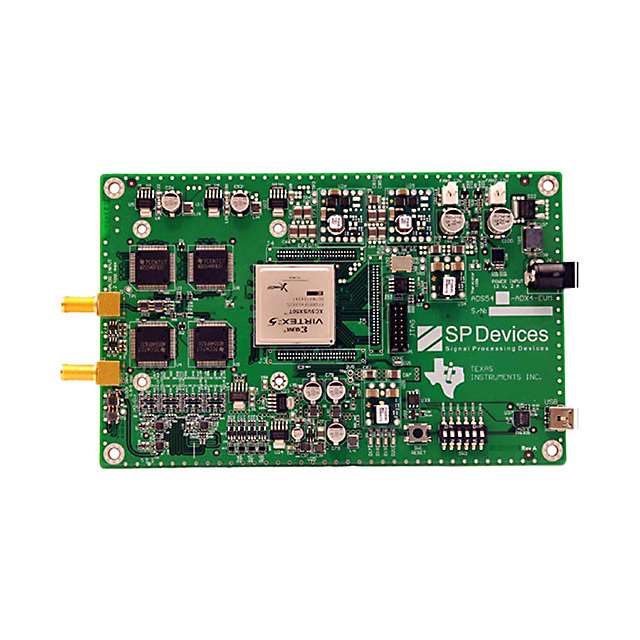

Texas Instruments ADS54RF63_ADX4												12 bits							4	550M	ADS54RF63	Board(s)	2.2 Vpp
Texas Instruments ADS54RF63IPFP	Surface Mount	80-HTQFP (12x12)	Differential	Parallel	1	Pipelined	1:1	5 V	3 V	3.6 V	S/H-ADC	12 bits	85 °C	-40 °C	3.6 V	3 V	Internal	80-TQFP Exposed Pad	1	550M

Catalog

12-Bit, 550-MSPS, RF Sampling Analog-to-Digital Converter (ADC)

Key Features

• 12-Bit ResolutionOn-Chip Analog BufferADS5463: 500 MSPSADS5463 SFDR: 77dBc at 300 MHz fINADS54RF63: 550 MSPSADS54RF63 SFDR: 70dBc at 900 MHz fIN2.3-GHz Input BandwidthLVDS-Compatible OutputsVery Low Latency: 3.5 Clock CyclesHigh Analog Input Swing without Damage,> 10 VppDifferential-AC SignalTotal Power Dissipation: 2.2 W80-Pin TQFP PowerPAD Package (14-mm × 14-mm footprint)Industrial Temperature Range: -40°C to 85°CPin-Similar/Compatible to 12-, 13-, and 14-Bit Family: ADS5440/ADS5444/ADS5474APPLICATIONSTest and Measurement InstrumentationSoftware-Defined RadioData AcquisitionPower Amplifier LinearizationCommunication InstrumentationRadarAll trademarks are the property of their respective owners.12-Bit ResolutionOn-Chip Analog BufferADS5463: 500 MSPSADS5463 SFDR: 77dBc at 300 MHz fINADS54RF63: 550 MSPSADS54RF63 SFDR: 70dBc at 900 MHz fIN2.3-GHz Input BandwidthLVDS-Compatible OutputsVery Low Latency: 3.5 Clock CyclesHigh Analog Input Swing without Damage,> 10 VppDifferential-AC SignalTotal Power Dissipation: 2.2 W80-Pin TQFP PowerPAD Package (14-mm × 14-mm footprint)Industrial Temperature Range: -40°C to 85°CPin-Similar/Compatible to 12-, 13-, and 14-Bit Family: ADS5440/ADS5444/ADS5474APPLICATIONSTest and Measurement InstrumentationSoftware-Defined RadioData AcquisitionPower Amplifier LinearizationCommunication InstrumentationRadarAll trademarks are the property of their respective owners.

Description

The ADS5463/ADS54RF63 is a 12-bit, 500-/550-MSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. This ADC is one of a family of 12-, 13-, and 14-bit ADCs that operate from 210 MSPS to 550 MSPS. The ADS5463/ADS54RF63 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. The ADS54RF63 provides superior SFDR compared to the ADS5463 when the analog input frequency exceeds ~350 MHz or if operation up to 550 MSPS is required. The ADS5463/ADS54RF63 is available in a TQFP-80 PowerPAD™ package. The ADS5463/ADS54RF63 is built on the Texas Instrument complementary bipolar process (BiCom3) and specified over the full industrial temperature range (-40°C to 85°C). The ADS5463/ADS54RF63 is a 12-bit, 500-/550-MSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. This ADC is one of a family of 12-, 13-, and 14-bit ADCs that operate from 210 MSPS to 550 MSPS. The ADS5463/ADS54RF63 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. The ADS54RF63 provides superior SFDR compared to the ADS5463 when the analog input frequency exceeds ~350 MHz or if operation up to 550 MSPS is required. The ADS5463/ADS54RF63 is available in a TQFP-80 PowerPAD™ package. The ADS5463/ADS54RF63 is built on the Texas Instrument complementary bipolar process (BiCom3) and specified over the full industrial temperature range (-40°C to 85°C).
