TNM6U Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

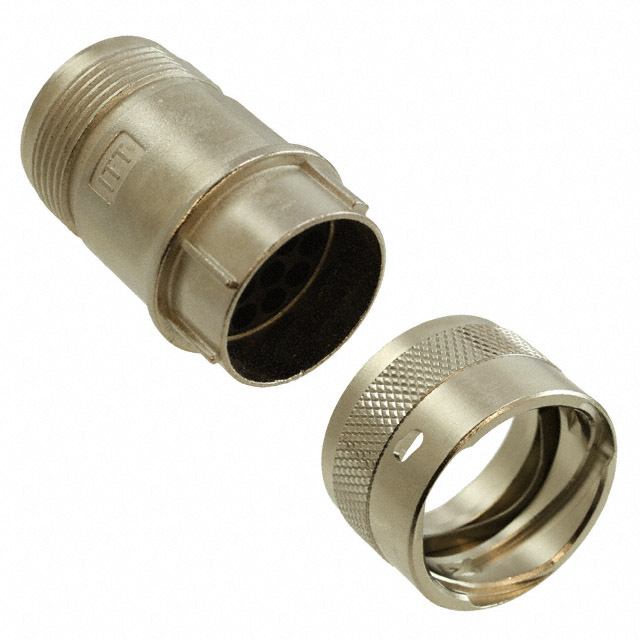

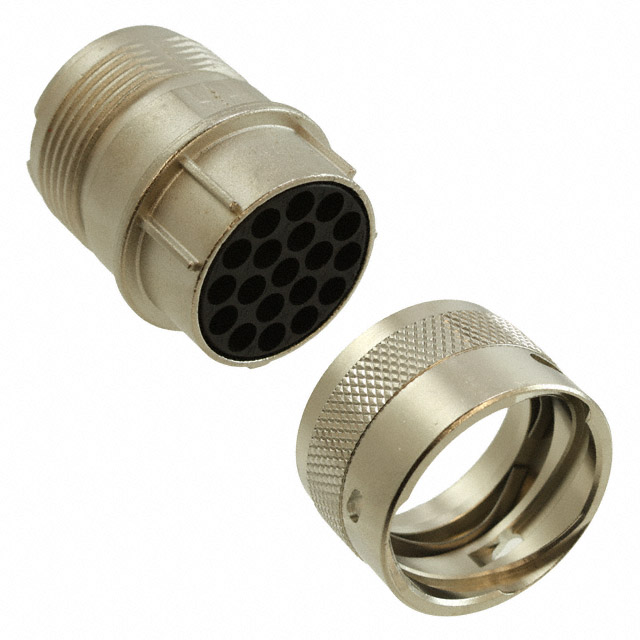

CONN PLG HSG FMALE 19POS INLINE
| Part | Contact Shape | Insert Material [custom] | Insert Material [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Note | Type | Mounting Type | Shell Material | Fastening Type | Shielding | Contact Type | Housing Color | Features | Material Flammability Rating | Shell Size - Insert | Shell Finish | Connector Type | Number of Positions | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | Circular | Nylon | Polyamide (PA) | -55 C | 105 ░C | Contacts Not Included | For Female Sockets | Free Hanging (In-Line) | Zinc Alloy | Detent Lock | Shielded | Crimp and Solder Cup | Silver | Coupling Nut | UL94 V-0 | 16-0019 | Nickel | Plug Housing | 19 | ||
 ITT Cannon, LLC | Circular | Nylon | Polyamide (PA) | -55 C | 105 ░C | Contacts Not Included | For Male Pins | Free Hanging (In-Line) | Zinc Alloy | Detent Lock | Shielded | Crimp and Solder Cup | Silver | Coupling Nut | UL94 V-0 | 16-0019 | Nickel | Plug Housing | 19 | ||
ITT Cannon, LLC | Circular | Nylon | Polyamide (PA) | -55 C | 105 ░C | Contacts Not Included | For Female Sockets | Free Hanging (In-Line) | Zinc Alloy | Detent Lock | Shielded | Crimp and Solder Cup | Silver | Coupling Nut | UL94 V-0 | 10-0004 | Nickel | Plug Housing | 4 | ||
ITT Cannon, LLC | Circular | Nylon | Polyamide (PA) | -55 C | 105 ░C | Contacts Not Included | For Female Sockets | Free Hanging (In-Line) | Zinc Alloy | Detent Lock | Shielded | Crimp and Solder Cup | Silver | Coupling Nut | UL94 V-0 | 14-0303 | Nickel | Plug Housing | 6 | 3 | 3 |
