NB7L14 Series

Clock / Data Fanout Buffer, 7 GHz, 1:4 Differential, LVPECL, 2.5 V, 3.3 V

Catalog

Clock / Data Fanout Buffer, 7 GHz, 1:4 Differential, LVPECL, 2.5 V, 3.3 V

Part	Mounting Type	Ratio - Input:Output	Frequency - Max [Max]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output	Input	Package / Case	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Function	Supplied Contents	Secondary Attributes	Primary Attributes [Max]	Primary Attributes	Contents
ON Semiconductor NB7L14MNG	Surface Mount	1:4	8 GHz	1	85 °C	-40 °C	16-QFN (3x3)	LVPECL	CML LVCMOS LVDS LVPECL LVTTL	16-VFQFN Exposed Pad	Fanout Buffer (Distribution)	3.6 V	2.375 V
ON Semiconductor NB7L14MMN	Surface Mount	1:4	8 GHz	1	85 °C	-40 °C	16-QFN (3x3)	CML	CML LVCMOS LVDS LVPECL LVTTL	16-VFQFN Exposed Pad	Data Fanout Buffer (Distribution) Translator	3.465 V	2.375 V
ON Semiconductor NB7L14MN1TWG	Surface Mount	1:4	8 GHz	1	85 °C	-40 °C	16-QFN (3x3)	LVPECL	CML LVCMOS LVDS LVPECL LVTTL	16-VFQFN Exposed Pad	Fanout Buffer (Distribution)	3.6 V	2.375 V
ON Semiconductor NB7L14MMNR2	Surface Mount	1:4	8 GHz	1	85 °C	-40 °C	16-QFN (3x3)	CML	CML LVCMOS LVDS LVPECL LVTTL	16-VFQFN Exposed Pad	Data Fanout Buffer (Distribution) Translator	3.465 V	2.375 V

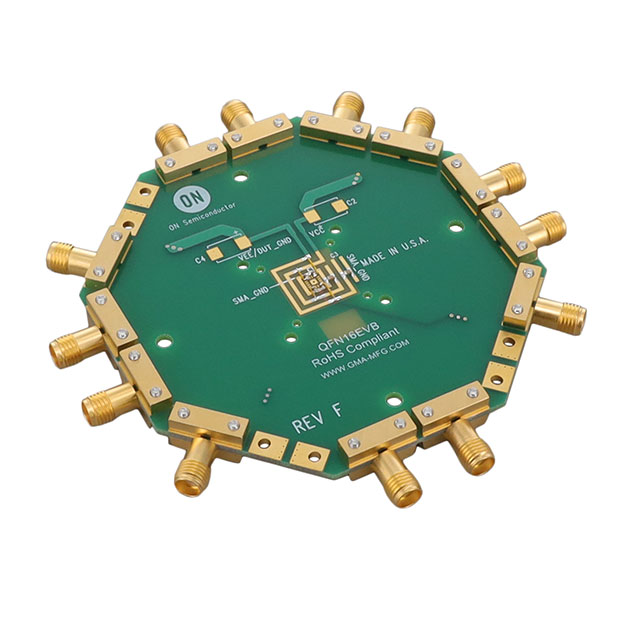

ON Semiconductor NB7L14MNGEVB											Timing			NB7L14	Clock Buffer	Board(s)

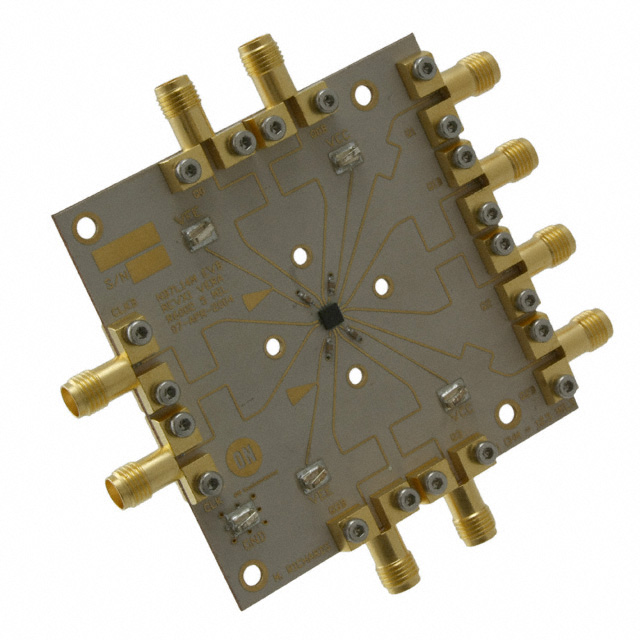

ON Semiconductor NB7L14MMNEVB											Timing			NB7L14M	Clock Buffer Driver Receiver Translator	Board(s)	Differential CML Output	12 Gb/s	8 GHz	Board(s)
ON Semiconductor NB7L14MNHTBG	Surface Mount	1:4	8 GHz	1	85 °C	-40 °C	16-QFN (3x3)	LVPECL	CML LVCMOS LVDS LVPECL LVTTL	16-VFQFN Exposed Pad	Fanout Buffer (Distribution)	3.6 V	2.375 V

Catalog

Clock / Data Fanout Buffer, 7 GHz, 1:4 Differential, LVPECL, 2.5 V, 3.3 V

Key Features

• Maximum Input Clock Frequnecy up to 7 GHz Typical

• Maximum Input Data Rate up to 10 Gb/s Typical

• < 0.8 ps of RMS Clock Jitter

• < 15 ps of Data Dependent Jitter

• 45 ps Typical Rise and Fall Times

• 165 ps Typical Propogation Delay

• 3 ps Typical Within Device Skew

• Operating Range: VCC= 2.375 V to 3.6 V

• LVPECL Output Level, 720 mV Peak-to-Peak

• 50-ohm Internal Input Termination Resistors

• Functionally Compatible with Existing 2.5 V / 3.3 V LVEL, LVEP, EP, and SG devices

Description

The NB7L14 is a differential 1:4 LVPECL fanout buffer. The NB7L14 produces four identical LVPECL output copies of Clock or Data operating up to 7 GHz or 10.7 Gb/s, respectively. As such, the NB7L14 is ideal for SONET, GigE, Fiber Channel, Backplane and other Clock or Data distribution applications. The differential inputs incorporate internal 50-ohm termination resistors that are accessed through the VT Pin. This feature allows the NB7L14 to accept various logic standards, such as LVPECL, CML, LVDS, LVCMOS or LVTTL logic levels. The VREFAC reference output can be used to rebias capacitor-coupled differential or single-ended input signals. The 1:4 fanout design was optimized for low output skew applications.
