3131-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

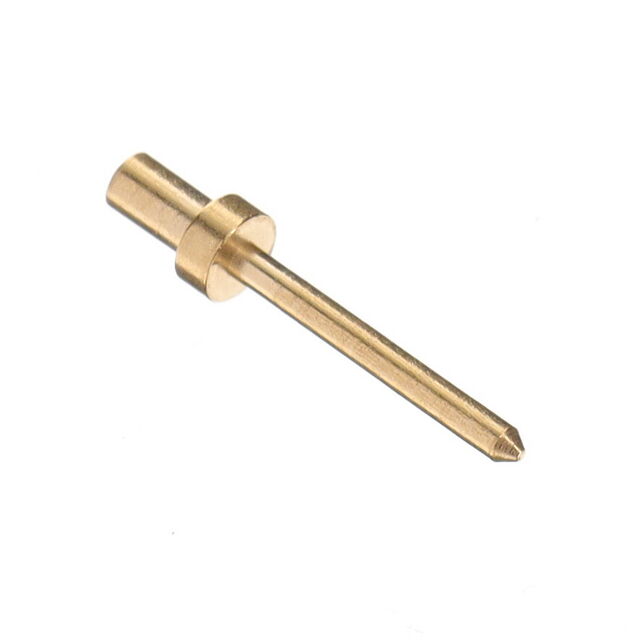

CONN PC PIN CIRC .025DIA GOLD
| Part | Mounting Type | Insulation | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall [x] | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | Non-Insulated | Swage | 1.57 mm | 0.062 in | Single End | 1.65 mm | 0.065 " | 5.72 mm | 0.225 in | 50 µin | 1.27 µm | 8 mm | 0.315 in | PC Pin | 0.64 mm | 0.025 in | Brass Alloy | 0.043 in | 1.09 mm | Gold |
 Mill-Max Manufacturing Corp. | Through Hole | Non-Insulated | Swage | 1.57 mm | 0.062 in | Single End | 1.65 mm | 0.065 " | 5.72 mm | 0.225 in | 20 µin | 0.51 µm | 8 mm | 0.315 in | PC Pin | 0.64 mm | 0.025 in | Brass Alloy | 0.043 in | 1.09 mm | Gold |
