PPPC122 Series

Catalog

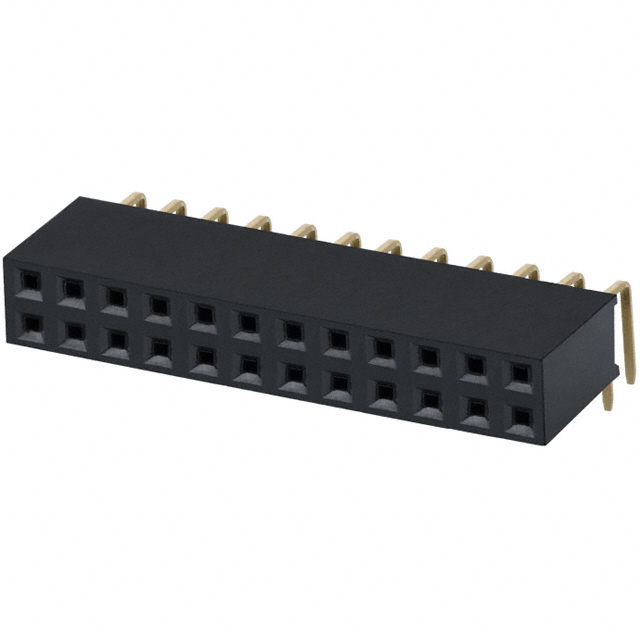

CONN HDR 24POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Color	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Type	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Mounting Type	Fastening Type	Number of Positions Loaded	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height
Sullins Connector Solutions PPPC122LJBN-RC	Flash	Polyester	Square	Phosphor Bronze	0.1 "	2.54 mm	Solder	Gold	0.124 in	3.15 mm	24	Black	250 V	Gold	Flash	Header	Female Socket	0.2 in	5.08 mm	2	Right Angle Through Hole	Push-Pull	All	3 A	0.1 in	2.54 mm	UL94 V-0	-40 C	105 ░C
Sullins Connector Solutions PPPC122LJBN	Flash	Polyester	Square	Phosphor Bronze	0.1 "	2.54 mm	Solder	Gold	0.124 in	3.15 mm	24	Black	250 V	Gold	Flash	Header	Female Socket	0.2 in	5.08 mm	2	Right Angle Through Hole	Push-Pull	All	3 A	0.1 in	2.54 mm	UL94 V-0	-40 C	105 ░C
Sullins Connector Solutions PPPC122KFMS	Flash	Polyester	Square	Phosphor Bronze	0.1 "	2.54 mm	Solder	Gold			24	Black	250 V	Gold	Flash	Header	Female Socket	0.299 "		2	Surface Mount	Push-Pull	All	3 A	0.1 in	2.54 mm	UL94 V-0	-40 C	125 °C	7.6 mm
