90147 Series
Manufacturer: Preci-Dip
Beta
⌘K

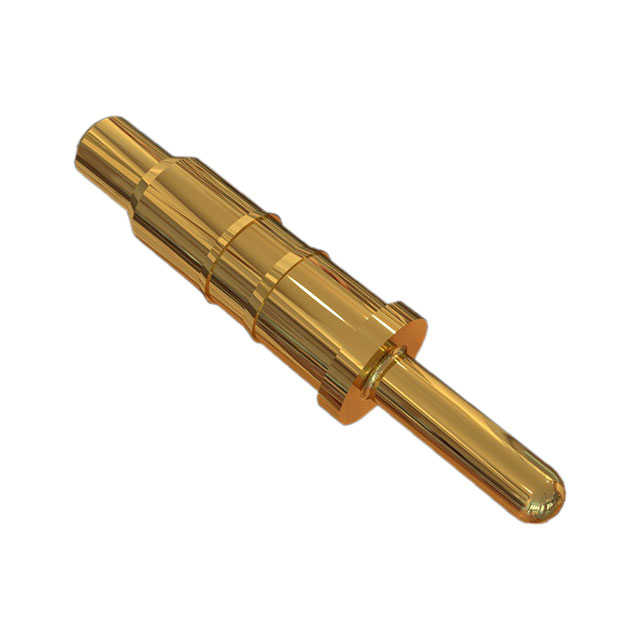

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height | Minimum Working Height [z] | Minimum Working Height [z] | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Mounting Type | Contact Type | Contact Finish | Operating Force - Mid Compression | Current Rating (Amps) | Contact Material | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.236 in | 6 mm | 0.181 in | 4.6 mm | 20 µin | 0.51 µm | 40000 | Through Hole | Sleeve & Plunger (Pogo Pins) | Gold | 86.68 gf | 3 A | Brass Alloy | 25.49 gf | 0.072 in | 1.83 mm | 0.042 in | 1.07 mm |
