325-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K

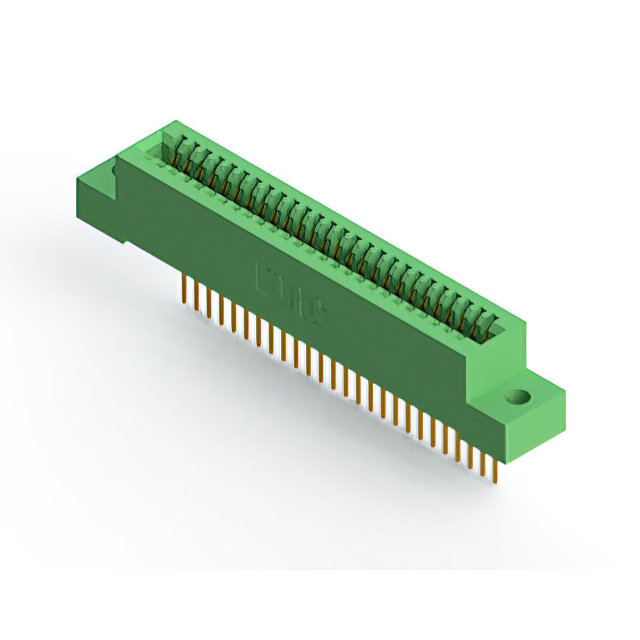

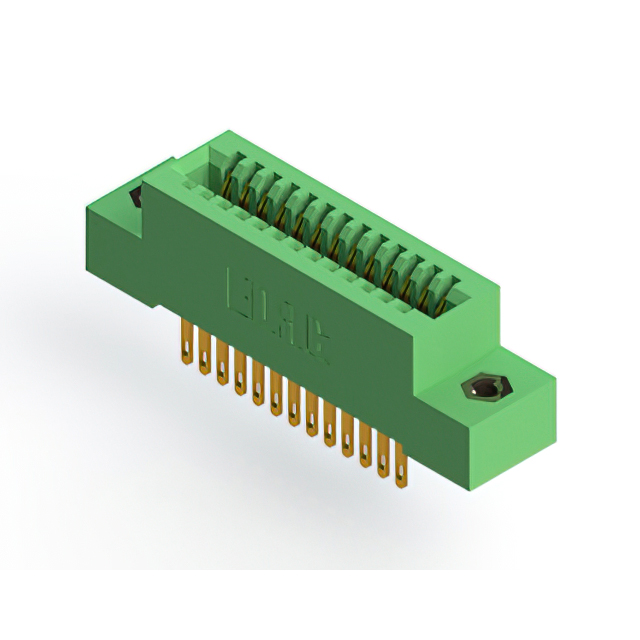

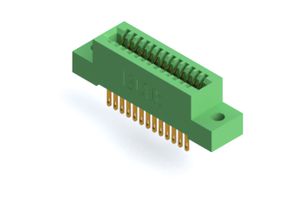

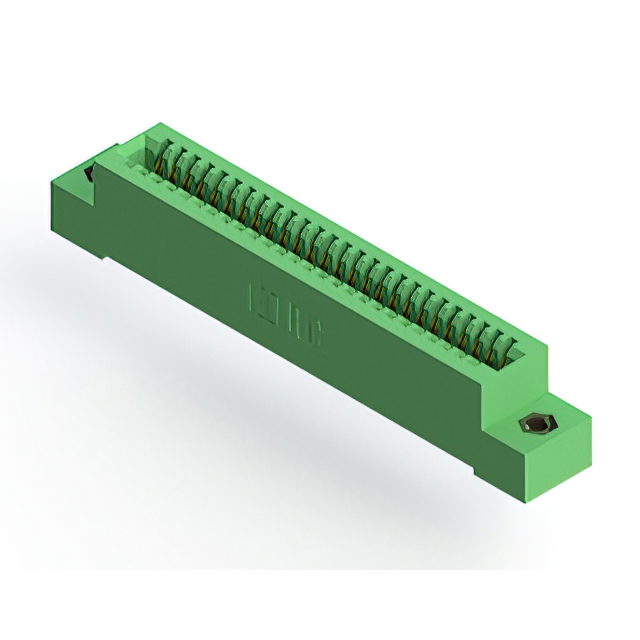

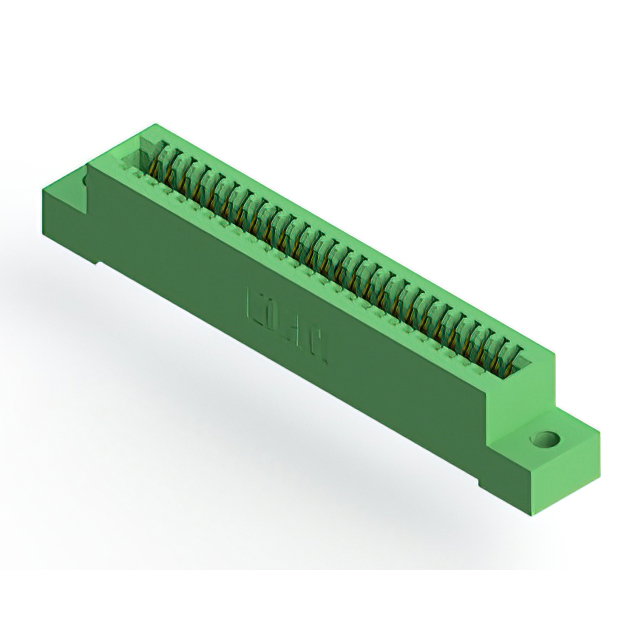

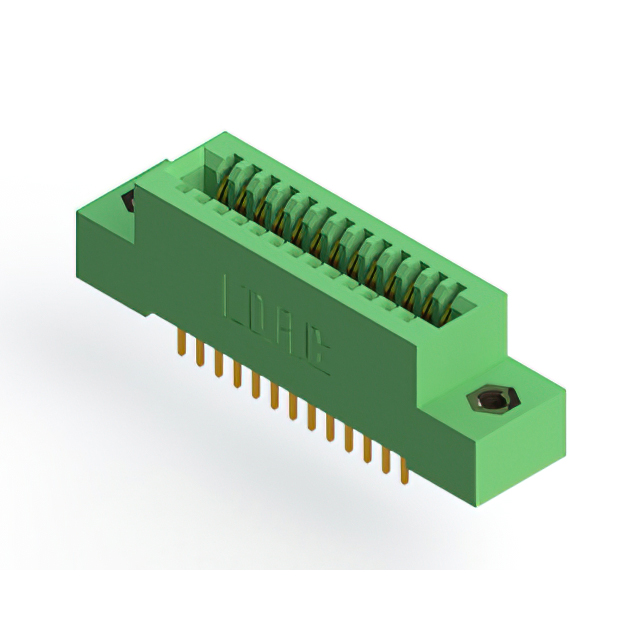

CONN EDGE SINGLE FML 26POS 0.100
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Read Out | Card Type | Card Thickness | Card Thickness | Color | Termination | Mounting Type | Contact Material | Gender | Number of Positions/Bay/Row | Contact Finish | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 26 | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | Green | Wire Wrap | Through Hole | Copper Alloy | Female | 26 | Gold | 1 | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.1 " | 2.54 mm | 26 | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | Green | Solder | Through Hole | Copper Alloy | Female | 26 | Gold | 1 | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 26 | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | Green | Solder Eyelet(s) | Through Hole | Copper Alloy | Female | 26 | Gold | 1 | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 26 | Dual | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Green | Solder | Through Hole | Copper Alloy | Female | 13 | Gold | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 26 | Dual | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Green | Solder Eyelet(s) | Through Hole | Copper Alloy | Female | 13 | Gold | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | 2 | 2 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 26 | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | Green | Solder | Through Hole | Copper Alloy | Female | 26 | Gold | 1 | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 26 | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | Green | Solder | Through Hole | Copper Alloy | Female | 26 | Gold | 1 | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 26 | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | Green | Solder Eyelet(s) | Through Hole | Copper Alloy | Female | 26 | Gold | 1 | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 26 | Dual | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Green | Solder Eyelet(s) | Through Hole | Copper Alloy | Female | 13 | Gold | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin | 2 | 2 | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.1 " | 2.54 mm | 26 | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | Green | Wire Wrap | Through Hole | Copper Alloy | Female | 26 | Gold | 1 | -65 ░C | 125 °C | Cantilever | 0.25 Ám | 10 Áin |
