CF886 Series

Manufacturer: Igus

Catalog

PVC4C/6AWG MOTOR CBL 1000V FEET

Part	Shield Material	Spool Size [x]	Spool Size [x]	Shield Coverage	Conductor Material	Number of Conductors	Length	Cable Type	Features	Jacket Color	Jacket (Insulation) Material	Conductor Insulation	Conductor Insulation	Voltage	Usage	Ratings	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Coverage [custom]
Igus CF886-160-04	Copper Tinned	304.8 m	1000 ft	60 %	Copper Bare	4	Enter Number of Feet in Order Quantity	Multi-Conductor	Flame Retardant	Orange	Poly-Vinyl Chloride (PVC)	TPE	Thermoplastic Elastomer	1 kV	Industrial	UL Style 10107	6 AWG	21.01 mm	0.827 in	Braid
Igus CF886-950-01					Copper Bare		Enter Number of Feet in Order Quantity	Hook-Up		Orange	Poly-Vinyl Chloride (PVC)			600 V		UL Style 2570		21.01 mm	0.827 in

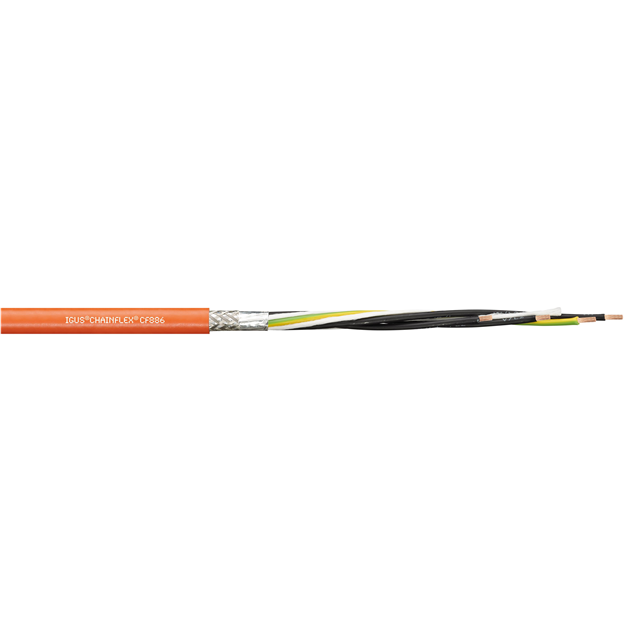

Igus CF886-700-01					Copper Bare		Enter Number of Feet in Order Quantity	Hook-Up		Orange	Poly-Vinyl Chloride (PVC)			600 V		UL Style 2570		19.51 mm	0.768 in
Igus CF886-160-01					Copper Bare		Enter Number of Feet in Order Quantity	Hook-Up		Orange	Poly-Vinyl Chloride (PVC)			600 V		UL Style 2570	6 AWG	11.51 mm	0.453 in
Igus CF886-60-04	Aluminum Copper Tinned	304.8 m	1000 ft		Copper Bare	4	Enter Number of Feet in Order Quantity	Multi-Conductor	Flame Retardant	Orange	Poly-Vinyl Chloride (PVC)	TPE	Thermoplastic Elastomer	1 kV	Industrial	UL Style 10107	10 AWG	14.5 mm	0.571 "	Braid Foil	60 % 100 %
Igus CF886-40-04	Aluminum Copper Tinned	304.8 m	1000 ft		Copper Bare	4	Enter Number of Feet in Order Quantity	Multi-Conductor	Flame Retardant	Orange	Poly-Vinyl Chloride (PVC)	TPE	Thermoplastic Elastomer	1 kV	Industrial	UL Style 10107	12 AWG	13.01 mm	0.512 in	Braid Foil	60 % 100 %
