UF3H3 Series
Manufacturer: Sunon Fans
Beta
⌘K

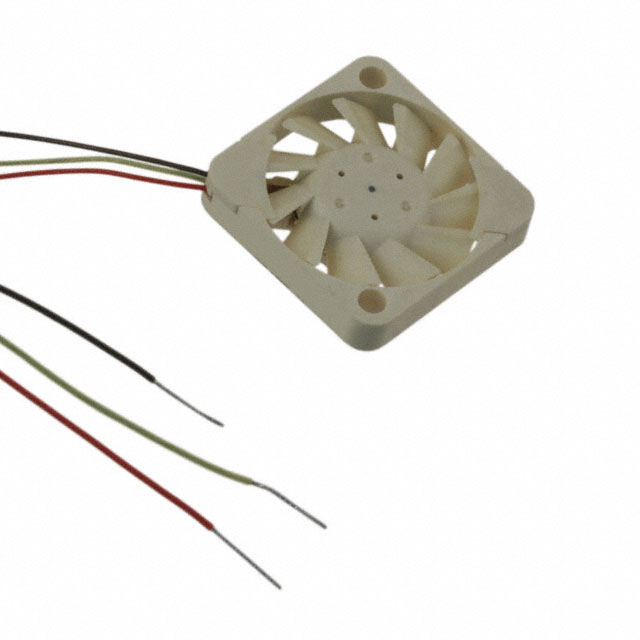

FAN AXIAL 17X3MM VAPO 3VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Width [x] | Approval Agency | Air Flow | Air Flow | Noise | Termination | Weight | Weight | Fan Type | Voltage - Rated | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Features | RPM | Power (Watts) | Static Pressure | Static Pressure | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 0.037 A | Liquid Crystal Polymer (LCP) | Magnesium | 3.5 VDC | 2 V | 3 mm | CE | 0.016 m³/min | 0.575 CFM | 32 dB | 3 Wire Leads | 1.36 g | 0.003 lb | Tubeaxial | 3 VDC | 17 mm | 17 mm | Vapo-Bearing™ | Auto Restart Speed Sensor (Tach) | 13000 RPM | 0.1 W | 0.085 in H2O | 21.2 Pa | IP55 - Dust Protected Water Resistant | 70 °C | -10 °C |
