LAKOAU110 Series
Manufacturer: E-Switch
Beta
⌘K

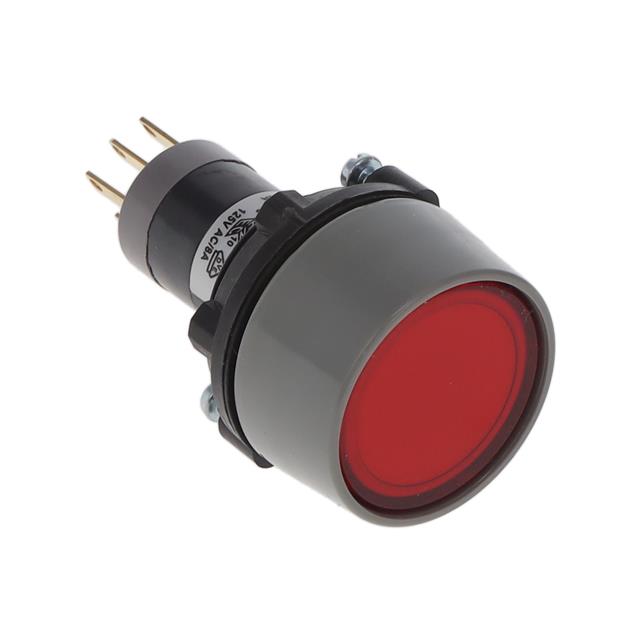

SWITCH PUSHBUTTON SPDT 8A 125V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Actuator Type | Switch Function | Ingress Protection | Color - Actuator/Cap | Circuit | Mounting Type | Voltage Rating - AC | Current Rating (Amps) | Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 50000 Cycles | No Marking | 24 V | 22 mm | Button Flush Round | On-Mom | IP65 - Dust Tight Water Resistant | Yellow | SPDT | Panel Mount Front | 125 V | 6 A 8 A | Standard | Quick Connect - 0.110" (2.8mm) | 55 °C | -20 ░C |
 E-Switch | 100000 Cycles | 50000 Cycles | No Marking | 24 V | 22 mm | Button Flush Round | On-Mom | IP65 - Dust Tight Water Resistant | Red | SPDT | Panel Mount Front | 125 V | 6 A 8 A | Standard | Quick Connect - 0.110" (2.8mm) | 55 °C | -20 ░C |
