S3D10065 Series

Catalog

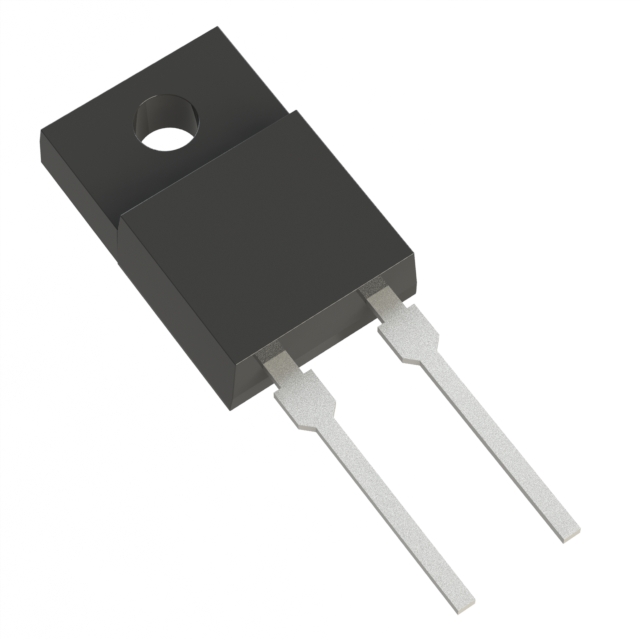

DIODE SIL CARB 650V 10A ITO220AC

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Mounting Type	Supplier Device Package	Package / Case	Capacitance @ Vr, F	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
SMC Diode Solutions S3D10065F	1.7 V	650 V	SiC (Silicon Carbide) Schottky	10 A	20 µA	Through Hole	ITO-220AC (TO-220-2F)	TO-220-2 Full Pack	621 pF	500 mA	175 ░C	-55 °C
SMC Diode Solutions S3D10065I	1.7 V	650 V	SiC (Silicon Carbide) Schottky	10 A	20 µA	Through Hole	TO-220-Isolation	TO-220-2 Isolated Tab	621 pF	500 mA	175 ░C	-55 °C
SMC Diode Solutions S3D10065A	1.7 V	650 V	SiC (Silicon Carbide) Schottky	10 A	20 µA	Through Hole	TO-220AC (TO-220-2)	TO-220-2	621 pF	500 mA	175 ░C	-55 °C
SMC Diode Solutions S3D10065D1	1.7 V	650 V	SiC (Silicon Carbide) Schottky	10 A	20 µA	Through Hole	TO-247AD	TO-247-3	621 pF	500 mA	175 ░C	-55 °C
SMC Diode Solutions S3D10065G	1.7 V	650 V	SiC (Silicon Carbide) Schottky	10 A	20 µA	Surface Mount	D2PAK	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	621 pF	500 mA	175 ░C	-55 °C
SMC Diode Solutions S3D10065E	1.7 V	650 V	SiC (Silicon Carbide) Schottky	10 A	20 µA	Surface Mount	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	621 pF	500 mA	175 ░C	-55 °C
