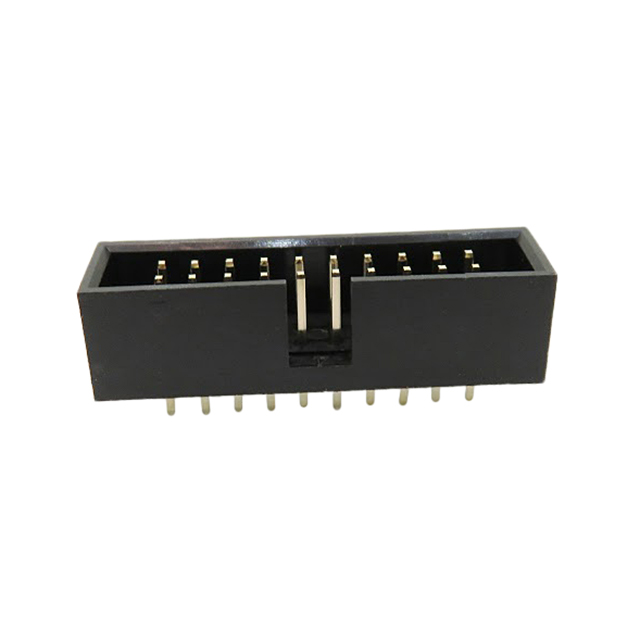

BHR-20 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER R/A 20POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Shape | Material Flammability Rating | Number of Rows [custom] | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Finish Thickness - Mating | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Contact Material | Number of Positions Loaded | Style | Number of Positions | Connector Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Shrouding | Contact Finish - Mating | Current Rating (Amps) | Contact Type | Features | Insulation Color | Contact Finish - Post | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | Square | UL94 V-0 | 2 | 0.126 " | 3.2 mm | 0.354 in | 9 mm | 0.1 " | 2.54 mm | 350 VAC | Flash | Right Angle Through Hole | 0.1 in | 2.54 mm | Latch Lock/Eject Hooks Long | Brass | All | Board to Board Cable | 20 | Header | Solder | -40 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | Gold | 3 A | Male Pin | Keying Slot | Black | Gold | ||
 Adam Tech | Flash | Square | UL94 V-0 | 2 | 0.358 " | 9.1 mm | 0.1 " | 2.54 mm | 250 VAC | Flash | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Brass | All | Board to Board Cable | 20 | Header | Solder | -50 °C | 105 ░C | Polybutylene Terephthalate (PBT) | Shrouded - 4 Wall | Gold | 3 A | Male Pin | Polarizing Key | Black | Gold | 0.13 " | 3.3 mm | ||

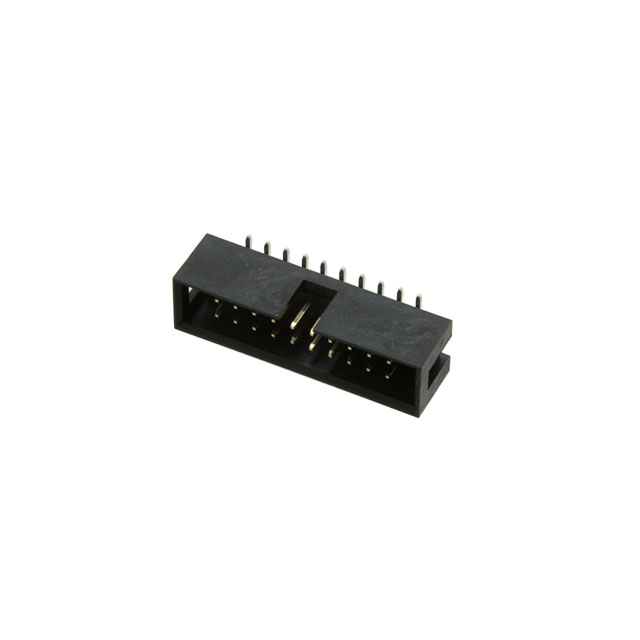

 Adam Tech | Square | UL94 V-0 | 2 | 0.413 in | 10.49 mm | 0.1 " | 2.54 mm | 250 VAC | Flash | Surface Mount | 0.1 in | 2.54 mm | Push-Pull | Brass | All | Board to Board Cable | 20 | Header | Solder | -40 C | 105 ░C | Thermoplastic | Shrouded - 4 Wall | Gold | 3 A | Male Pin | Keying Slot | Black | Tin |
