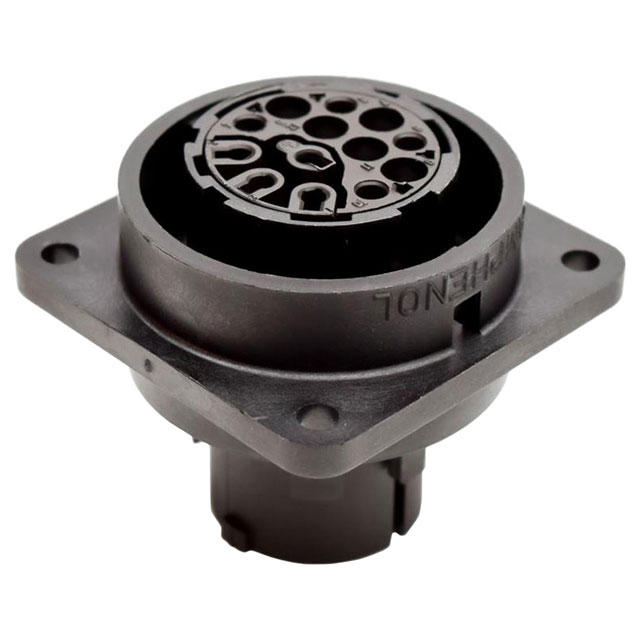

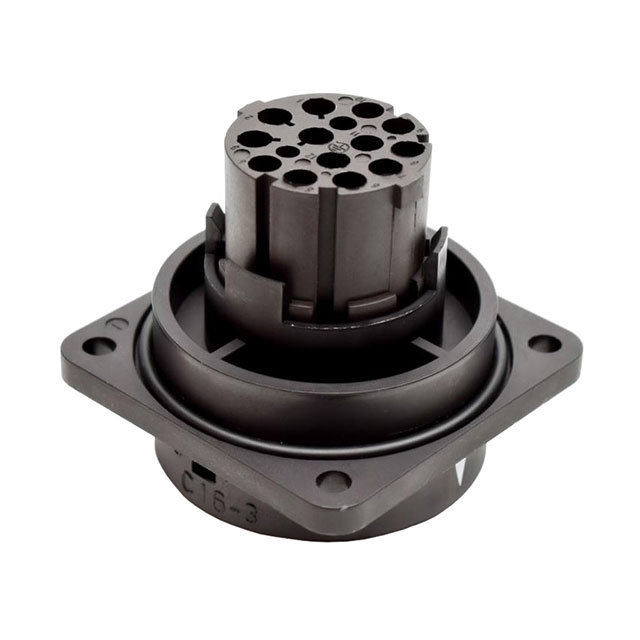

C01610G012 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN RCPT HSG FMALE 13POS PNL MT
| Part | Housing Color | Connector Type | Shell Size - Insert [custom] | Mounting Type | Contact Shape | Shell Material | Type | Orientation | Mounting Feature | Contact Size | Material Flammability Rating | Contact Type | Number of Positions [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Note | Shielding | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Black | Receptacle Housing | 2 | Panel Mount | Circular | Nylon 6/6 Polyamide (PA66) | For Female Sockets | N (Normal) | Flange | 1.6 mm 2.5 mm | UL94 V-0 | Crimp | 13 | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Contacts Not Included | Unshielded | Bayonet Lock |
