117-87 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN IC DIP SOCKET 56POS GOLD
| Part | Contact Resistance | Termination Post Length | Termination Post Length | Current Rating (Amps) | Material Flammability Rating | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Housing Material | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Features | Number of Positions or Pins (Grid) | Type [custom] | Type [custom] | Type | Termination | Contact Material - Post [custom] | Contact Finish - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Type | Type | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

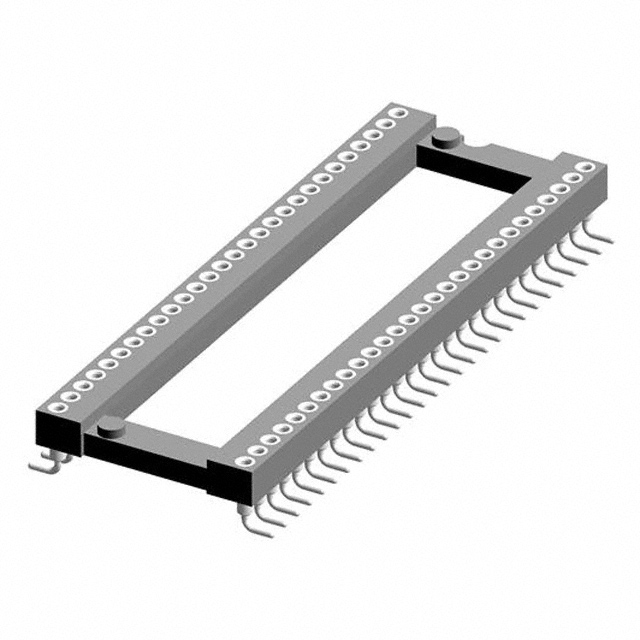

 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 56 | 15.24 mm | 0.6 in | DIP | Solder | Brass | Gold | |||||||

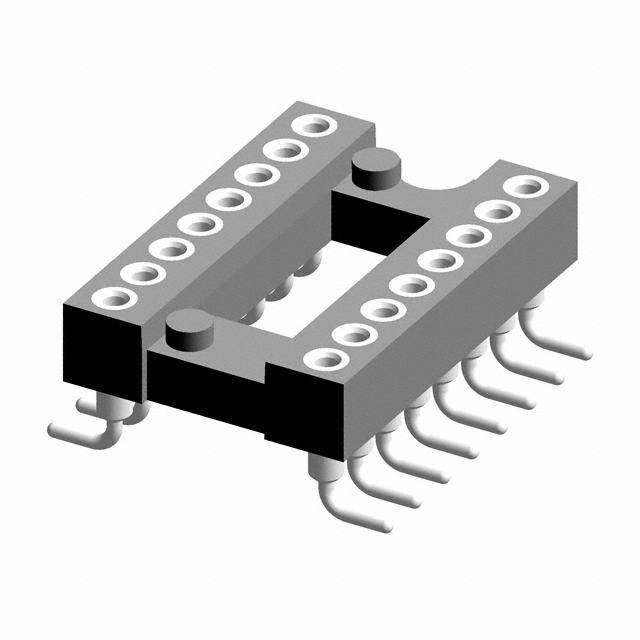

 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 16 | DIP | Solder | Brass | Gold | 2 | 8 | 7.62 mm | 0.3 in | |||||

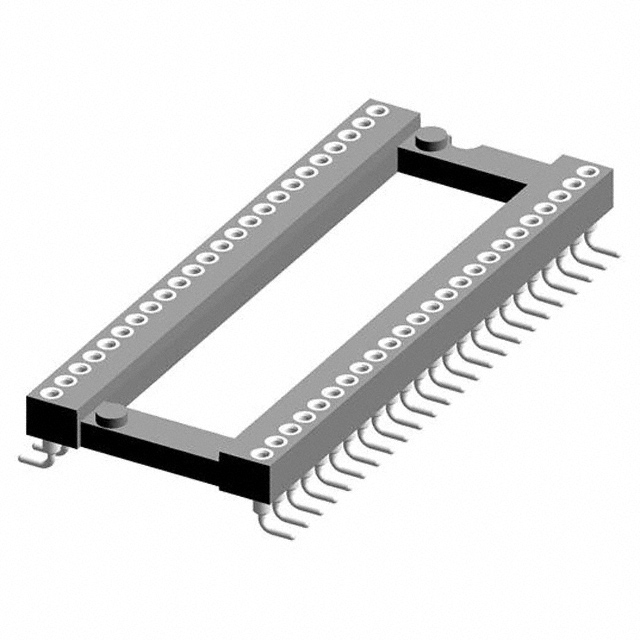

 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 15.24 mm | 0.6 in | DIP | Solder | Brass | Gold | 2 | 48 | 24 | |||||

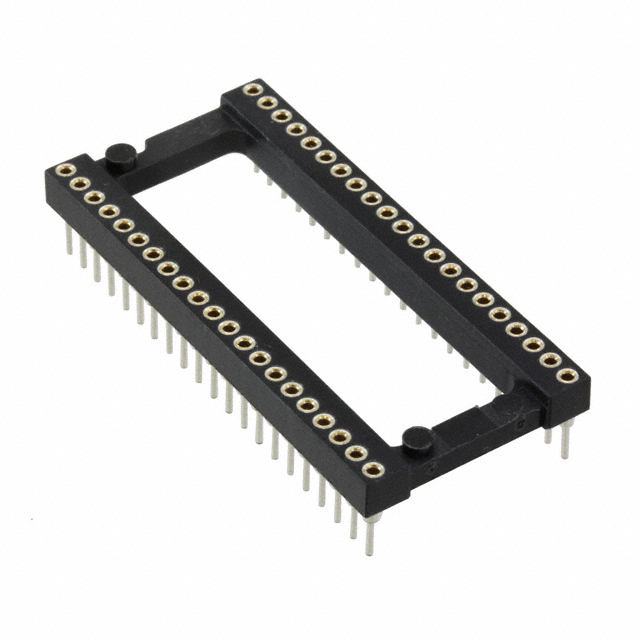

 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 42 | 15.24 mm | 0.6 in | DIP | Solder | Brass | Gold | |||||||
 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 42 | 15.24 mm | 0.6 in | DIP | Solder | Brass | Gold | |||||||

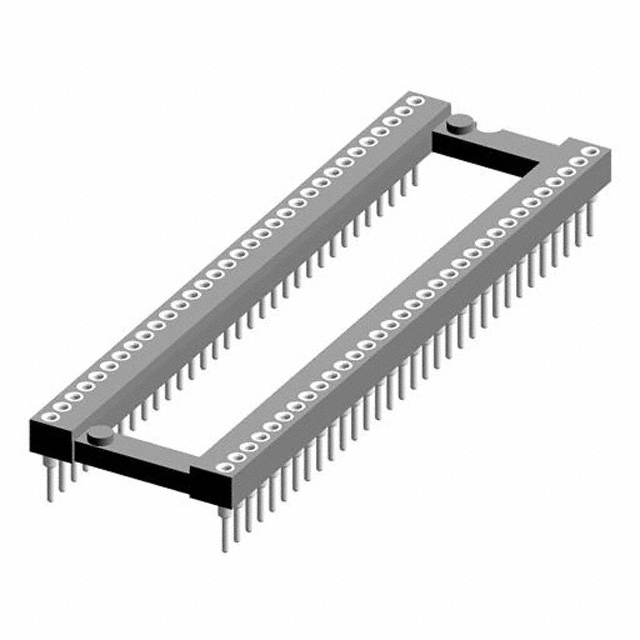

 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 64 | DIP | Solder | Brass | Gold | 19.05 mm | 0.75 in | 32 | 2 | |||||

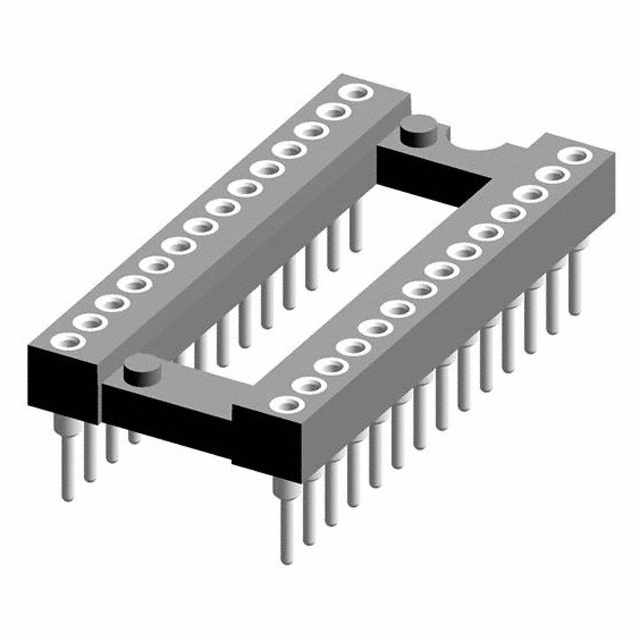

 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 28 | DIP | Solder | Brass | Gold | 0.4 in | ||||||||

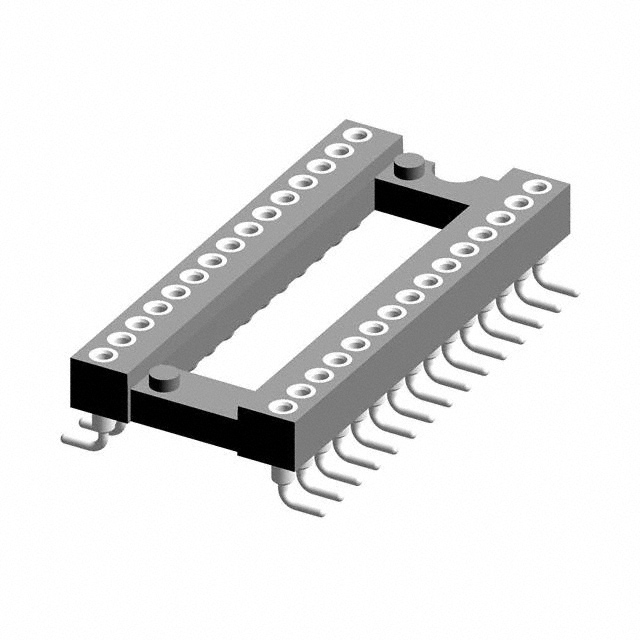

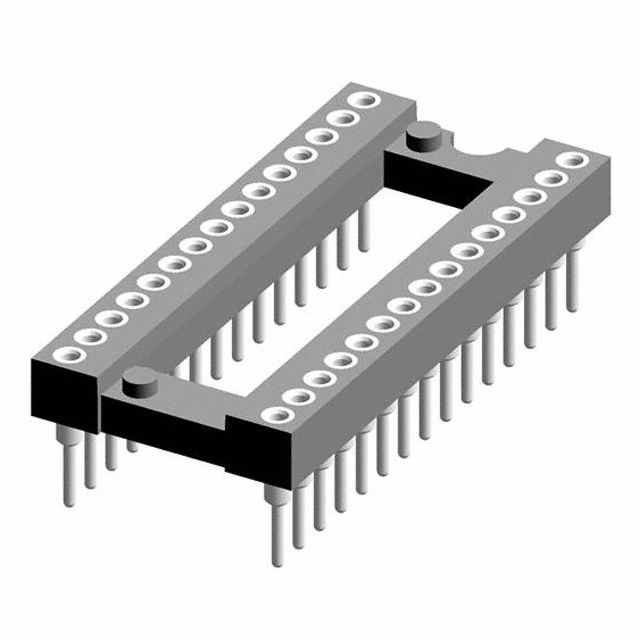

 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 30 | DIP | Solder | Brass | Gold | 2 | 15 | 0.4 in | ||||||
 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 56 | 15.24 mm | 0.6 in | DIP | Solder | Brass | Gold | |||||||
 Preci-Dip | 10 mOhm | 0.125 in | 3.18 mm | 1 A | UL94 V-0 | Beryllium Copper | 0.07 in | 1.78 mm | 0.07 in | 1.78 mm | Flash | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin | -55 C | 125 °C | Through Hole | Open Frame | 24 | 15.24 mm | 0.6 in | DIP | Solder | Brass | Gold | 2 | 12 |
