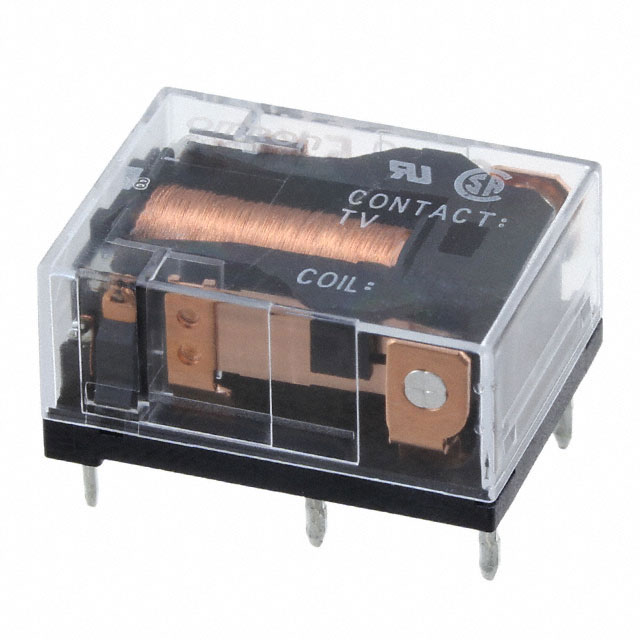

G6CK-111 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 24V
| Part | Operate Time | Seal Rating | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Coil Resistance | Coil Current | Contact Form | Load - Max Switching | Approval Agency | Mounting Type | Termination Style | Contact Material | Coil Voltage | Coil Type | Release Time | Must Operate Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10 ms | Sealed - Flux Protection | 125 VDC 380 VAC | 70 °C | -25 °C | 10 A | 2 kOhms | 11.7 mA | SPST-NO (1 Form A) | 1250 W 3800 VA | CSA TUV UR VDE | Through Hole | PC Pin | Cadmium Free Silver Alloy | 24 VDC | Latching Dual Coil | 10 ms | 16.8 VDC | General Purpose |
 Omron Electronics Inc-EMC Div | 10 ms | Sealed - Fully | 125 VDC 380 VAC | 70 °C | -25 °C | 10 A | 45 Ohms | 67 mA | SPST-NO (1 Form A) | 1250 W 3800 VA | CSA TUV UR VDE | Through Hole | PC Pin | Cadmium Free Silver Alloy | Latching Single Coil | 10 ms | 2.1 VDC | General Purpose | |
 Omron Electronics Inc-EMC Div | 10 ms | Sealed - Fully | 125 VDC 380 VAC | 70 °C | -25 °C | 10 A | 89.2 Ohms | 56 mA | SPST-NO (1 Form A) | 1250 W 3800 VA | CSA TUV UR VDE | Through Hole | PC Pin | Cadmium Free Silver Alloy | 5 VDC | Latching Dual Coil | 10 ms | 3.5 VDC | General Purpose |
Omron Electronics Inc-EMC Div | 10 ms | Sealed - Flux Protection | 125 VDC 380 VAC | 70 °C | -25 °C | 10 A | 45 Ohms | 67 mA | SPST-NO (1 Form A) | 1250 W 3800 VA | CSA TUV UR VDE | Through Hole | PC Pin | Cadmium Free Silver Alloy | Latching Single Coil | 10 ms | 2.1 VDC | General Purpose | |
Omron Electronics Inc-EMC Div | 10 ms | Sealed - Flux Protection | 125 VDC 380 VAC | 70 °C | -25 °C | 10 A | 515 Ohms | 23.3 mA | SPST-NO (1 Form A) | 1250 W 3800 VA | CSA TUV UR VDE | Through Hole | PC Pin | Cadmium Free Silver Alloy | 12 VDC | Latching Dual Coil | 10 ms | 8.4 VDC | General Purpose |
