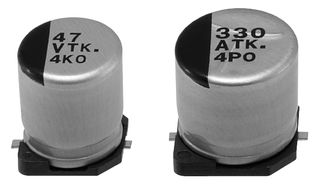

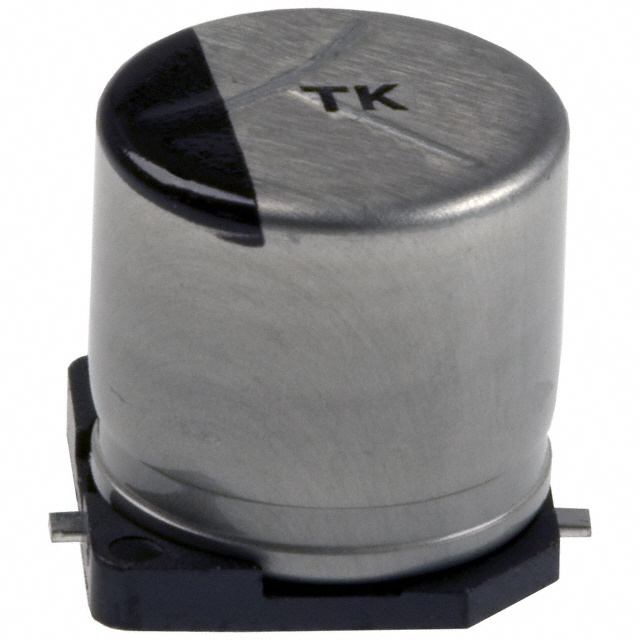

EEE-TKK Series

Catalog

CAP ALUM 100UF 20% 80V SMD

Part	Mounting Type	Polarization	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Applications	Package / Case	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Ripple Current @ High Frequency	Capacitance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EEE-TKK101UAQ	Surface Mount	Polar	2000 Hrs	0.531 "	13.5 mm	0.492 in	12.5 mm	420 mOhm	General Purpose	Radial Can - SMD	13.5 mm	13.5 mm	0.531 in	0.531 in	20 %	125 °C	-40 °C	80 V	250 mA	100 µF
Panasonic Industrial Automation Sales EEE-TKK221UAM	Surface Mount	Polar	2000 Hrs	16.51 mm		0.63 in	16 mm	300 mOhm	General Purpose	Radial Can - SMD	17 mm	17 mm	0.669 in	0.669 in	20 %	125 °C	-40 °C	80 V	350 mA	220 µF	262.5 mA	16.5 mm
