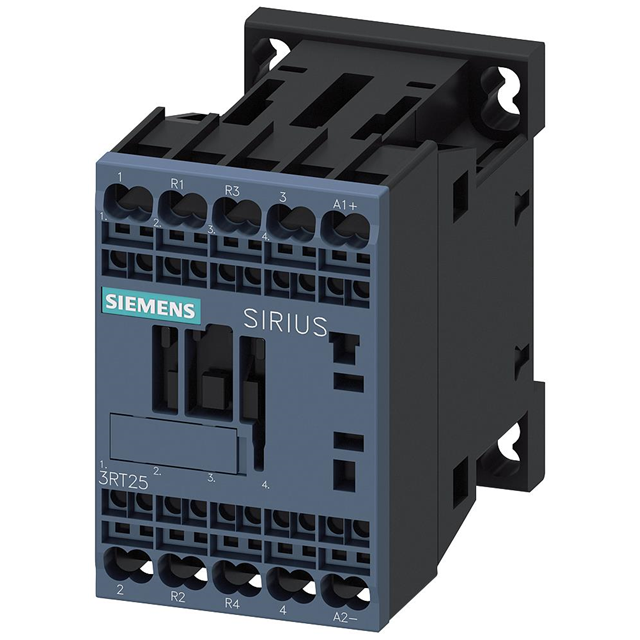

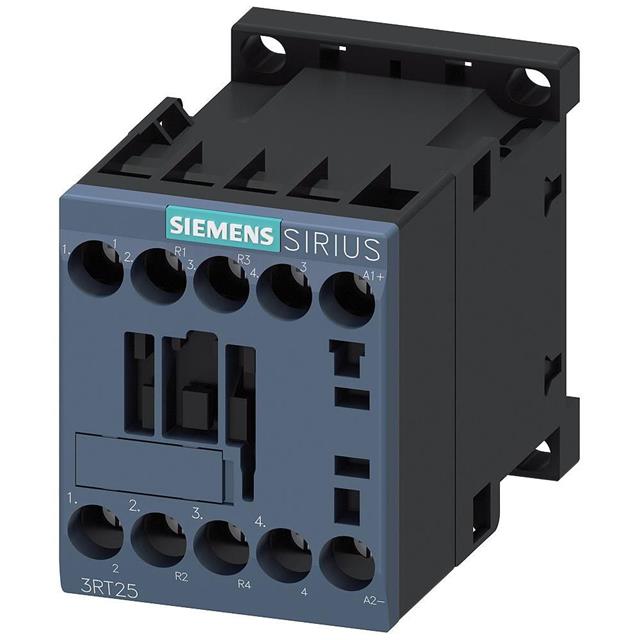

3RT2518 Series

Manufacturer: Siemens

Catalog

CONTACTOR S00 16A 240VAC 2NO/2NC

Part	Coil Voltage	Termination Style	Release Time	Operate Time	Coil Power	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Must Operate Voltage	Contact Form	Features	Contact Rating (Current)
Siemens 3RT25182AP60	220 VAC/DC	Spring Terminal
Siemens 3RT25182BB40	24 VDC	Spring Terminal	13 ms	100 ms	4 W	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	19.2 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	Auxiliary Contacts	16 A
Siemens 3RT25182BM40	220 VDC	Screw Terminal	13 ms	100 ms	4 W	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	176 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	Auxiliary Contacts	16 A
Siemens 3RT25181AP00	230 VAC	Screw Terminal	13 ms	35 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	184 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	Auxiliary Contacts	16 A
Siemens 3RT25182BG40	125 VDC
Siemens 3RT25181BG40	125 VAC												16 A
Siemens 3RT25181AB00	24 VAC	Screw Terminal	13 ms	35 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	19.2 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	Auxiliary Contacts	16 A
Siemens 3RT25181BM40	220 VDC	Screw Terminal	13 ms	100 ms	4 W	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	176 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	Auxiliary Contacts	16 A
Siemens 3RT25182AB00	24 VAC	Spring Terminal	13 ms	35 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	19.2 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	Auxiliary Contacts	16 A
Siemens 3RT25182AK60	120 VAC	Spring Terminal	13 ms	35 ms	43 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	96 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	Auxiliary Contacts	20 A
