UPBV Series

Catalog

DIN RAIL TERMINAL BLOCKS UPBV 2.5/ 1-M GNYE

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Insulation Height [z]	Insulation Height [z]	Screw Size	Wire Strip Length	Housing Material	Material Flammability Rating	Positions Per Level	Voltage - IEC	Current - UL	Plug Wire Entry	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Number of Levels	Features	Number of Positions	Mounting Type	Termination Style	Current - IEC	Color	Insulation Height	Insulation Height
Phoenix Contact 3045363	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	47 mm	1.85 in	M3	9 mm	Polyamide (PA) Nylon	UL94 V-0	1	500 V	20 A	90 °	12 AWG	26 AWG	0.14 mm²	4 mm²	Plug Female Sockets	1	Interlocking (Side)	1	Free Hanging (In-Line)	Screw	24 A	Green Yellow
Phoenix Contact 3045444											6	500 V	20 A	90 °	12 AWG	26 AWG	0.14 mm²	4 mm²	Plug Female Sockets	1		6	Free Hanging (In-Line)	Screw	24 A	Gray

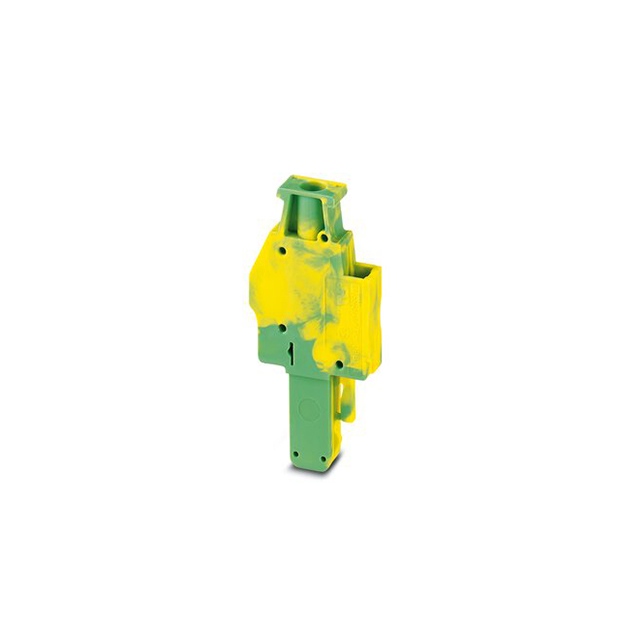

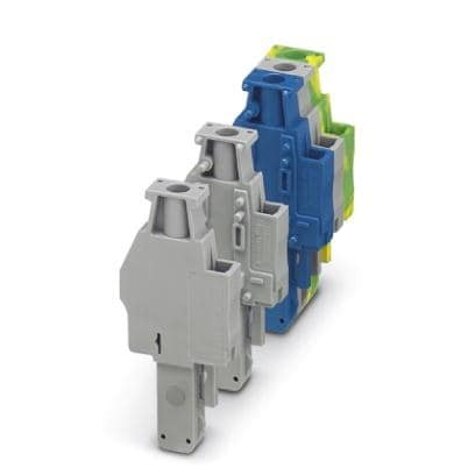

Phoenix Contact 3045732	0.8 Nm	5.3 Lb-In	0.6 Nm	7.1 Lb-In			M3	9 mm	Polyamide (PA) Nylon	UL94 V-0	1	800 V	30 A	90 °	10 AWG	26 AWG	0.14 mm²	6 mm²	Plug Female Sockets	1	Interlocking (Side)	1	Free Hanging (In-Line)	Screw	32 A	Green Yellow	48.5 mm	1.909 in
Phoenix Contact 3045790											1	800 V	30 A	90 °	10 AWG	26 AWG	0.14 mm²	6 mm²	Plug Female Sockets	1	Interlocking (Side)	1	Free Hanging (In-Line)	Screw	32 A	Green Yellow

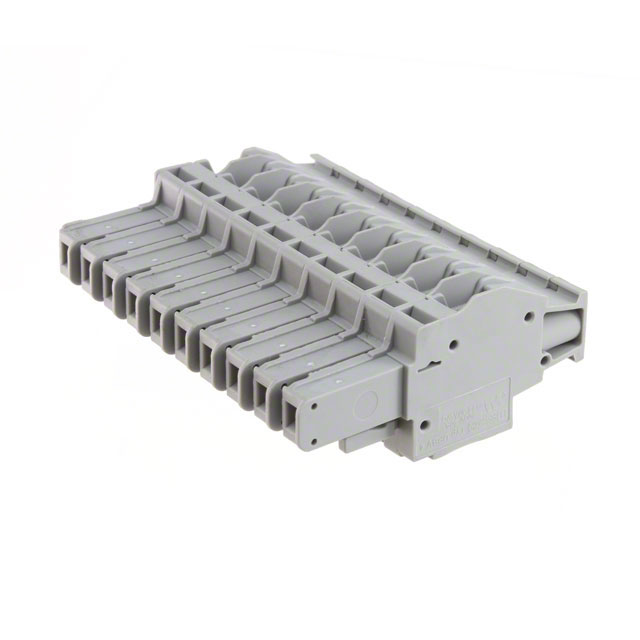

Phoenix Contact 3045897	0.8 Nm	5.3 Lb-In	0.6 Nm	7.1 Lb-In			M3	9 mm	Polyamide (PA) Nylon	UL94 V-0	10	800 V	30 A	90 °	10 AWG	26 AWG	0.14 mm²	6 mm²	Plug Female Sockets	1		10	Free Hanging (In-Line)	Screw	32 A	Gray	48.5 mm	1.909 in
