R3G175 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

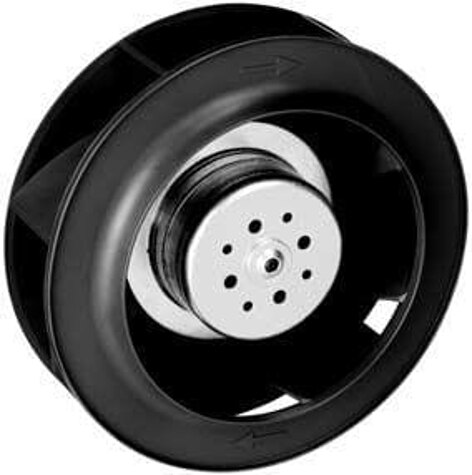

BLOWERS & CENTRIFUGAL FANS EC CENTRIFUGAL FAN, 175MM ROUND, 230VAC, 85W, 3740RPM, IP54, RADICAL
| Part | Termination | RPM | Features | Air Flow | Air Flow | Fan Type | Bearing Type | Static Pressure | Static Pressure | Width [y] | Voltage - Rated | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Approval Agency | Size / Dimension | Size / Dimension [diameter] | Material - Frame | Current Rating (Amps) | Material - Blade | Width [x] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 3 Wire Leads with Splice Terminals 4 Wire Leads with Splice Terminals | 3740 RPM | PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP) | 6.44 m³/min | 230 CFM | Motorized Impellers | Ball | 350 Pa | 1.405 in H2O | 71.4 mm | 230 VAC | 59 dB(A) | -25 °C | 60 °C | IP54 - Dust Protected Water Resistant | CE CSA UL | Round | 175 mm | |||||
ebm-papst Inc. | 3 Wire Leads with Splice Terminals 4 Wire Leads with Splice Terminals | 4500 RPM | PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP) | Motorized Impellers | Ball | 230 VAC | -25 °C | 60 °C | IP44 | CCC EAC | Round | 170 mm | Aluminum | 800 mA | Polyamide (PA) Nylon | 95 mm | 104 W | ||||||
 ebm-papst Inc. | 3 Wire Leads 4 Wire Leads | 4070 RPM | PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP) | Motorized Impellers | Ball | 230 VAC | -30 ░C | 60 °C | IP44 | CCC CE EAC | Round | 175 mm | Aluminum | 600 mA | Polyamide (PA) Nylon | 95 mm | 78 W |
