8281 Series
Manufacturer: Belden Inc.
Beta
⌘K

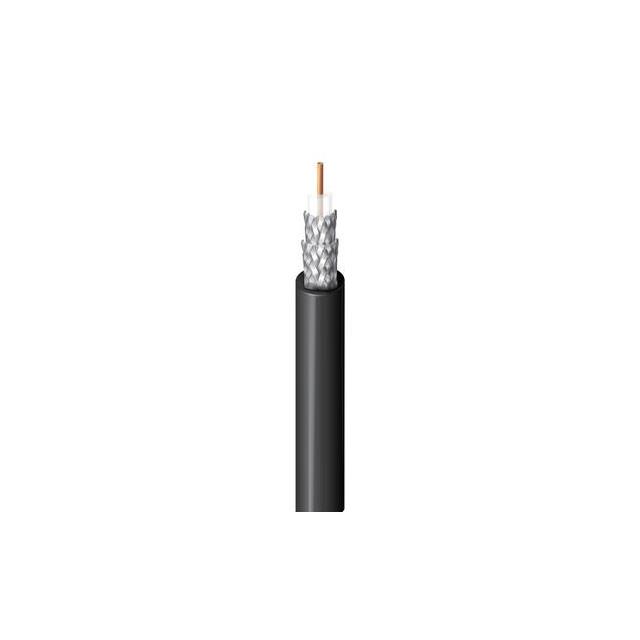

75 OHM VIDEO COAX
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Shield Coverage | Shield Material | VoP, Velocity of Propagation | Impedance | Cable Type | Usage | Conductor Strand | Length [x] | Length [x] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Cable Group | Jacket (Insulation) Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -55 C | 80 °C | 5.03 mm | 0.198 in | Copper Bare | 95 % | Copper Tinned | 66 | 75 Ohms | Coaxial | Video | Solid | 304.8 m | 1000 ft | Black | 0.305 in | 7.75 mm | Double Braid | RG-59 | Polyethylene (PE) | 20 AWG |
Belden Inc. | -55 C | 80 °C | 5.03 mm | 0.198 in | Copper Bare | 95 % | Copper Tinned | 66 | 75 Ohms | Coaxial | Video | Solid | 152.4 m | 500 ft | Black | 0.305 in | 7.75 mm | Double Braid | RG-59 | Polyethylene (PE) | 20 AWG |
Belden Inc. | -55 C | 80 °C | 5.03 mm | 0.198 in | Copper Bare | 95 % | Copper Tinned | 66 | 75 Ohms | Coaxial | Video | Solid | 304.8 m | 1000 ft | Orange | 0.305 in | 7.75 mm | Double Braid | RG-59 | Polyethylene (PE) | 20 AWG |
