5601-0 Series

Catalog

CONN PC PIN CIRC 0.030DIA GOLD

Part	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Termination	Insulation	Length - Above Flange [x]	Length - Above Flange [x]	Contact Finish Thickness	Contact Finish Thickness	Terminal Style	Contact Material	Length - Below Flange [x]	Length - Below Flange [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Mounting Type	Board Thickness [Max]	Board Thickness [Max]	Board Thickness [Min]	Board Thickness [Min]	Terminal Type
Mill-Max Manufacturing Corp. 5601-0-01-34-00-00-03-0	Gold	1.02 mm	0.04 in	0.406 "	10.3 mm	Press-Fit	Non-Insulated	4.85 mm	0.191 in	50 µin	1.27 µm	Single End	Brass Alloy	0.203 "	5.16 mm	0.072 "	1.83 mm	0.03 in	0.76 mm	Through Hole	2.54 mm	0.1 in	1.52 mm	0.06 in	PC Pin

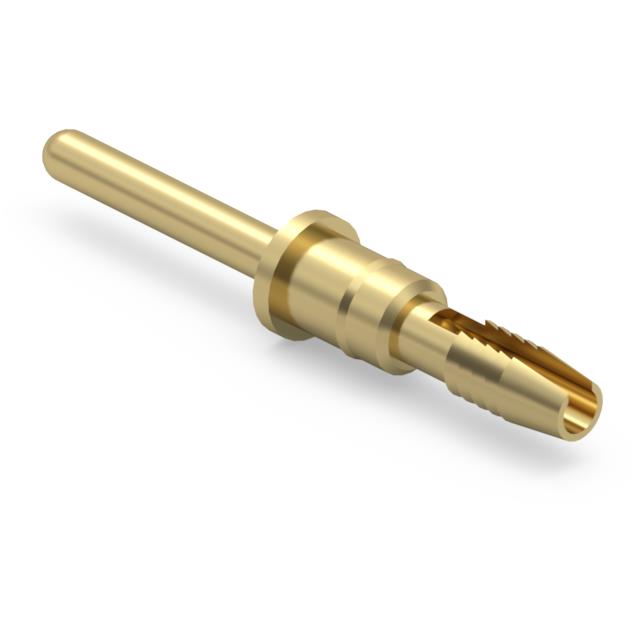

Mill-Max Manufacturing Corp. 5601-0-01-15-00-00-03-0	Gold	1.02 mm	0.04 in	0.406 "	10.3 mm	Press-Fit	Non-Insulated	4.85 mm	0.191 in	10 Áin	0.25 Ám	Single End	Brass Alloy	0.203 "	5.16 mm	0.072 "	1.83 mm	0.03 in	0.76 mm	Through Hole	2.54 mm	0.1 in	1.52 mm	0.06 in	PC Pin
