299-87 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN IC DIP SOCKET 36POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Material - Post [custom] | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Contact Finish - Mating | Type [custom] | Type [custom] | Type | Features | Housing Material | Contact Finish Thickness - Mating | Contact Material - Mating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) | Termination | Type | Type | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

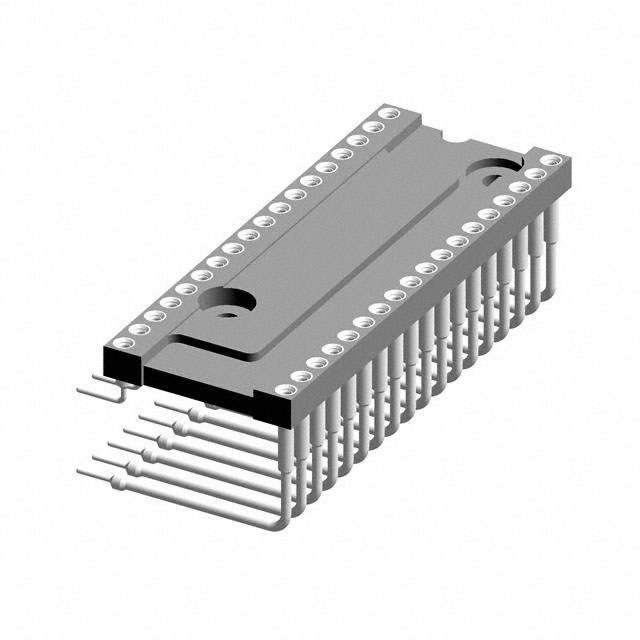

 Preci-Dip | 10 mOhm | UL94 V-0 | 3.24 mm | 0.128 in | 1 A | Brass | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | 15.24 mm | 0.6 in | DIP | Closed Frame | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Beryllium Copper | Tin | -55 C | 125 °C | 36 | Solder | ||||||

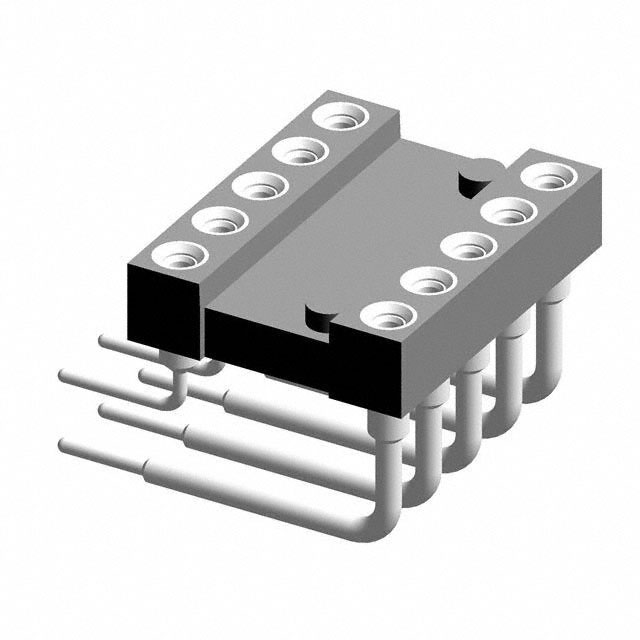

 Preci-Dip | 10 mOhm | UL94 V-0 | 3.24 mm | 0.128 in | 1 A | Brass | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | DIP | Closed Frame | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Beryllium Copper | Tin | -55 C | 125 °C | 10 | Solder | 7.62 mm | 0.3 in | 5 | 2 | ||||

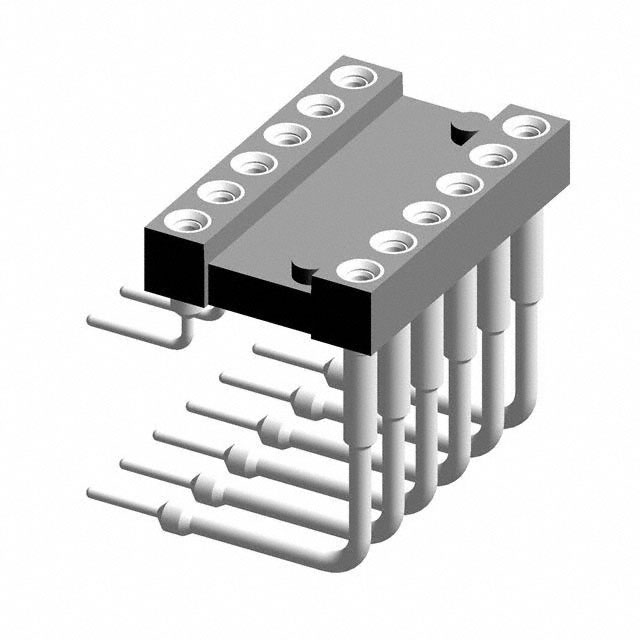

 Preci-Dip | 10 mOhm | UL94 V-0 | 3.24 mm | 0.128 in | 1 A | Brass | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | DIP | Closed Frame | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Beryllium Copper | Tin | -55 C | 125 °C | 12 | Solder | 7.62 mm | 0.3 in | ||||||

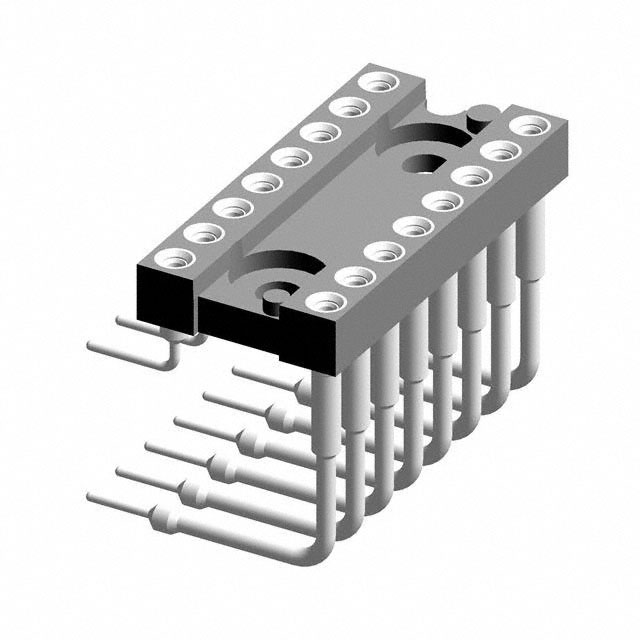

 Preci-Dip | 10 mOhm | UL94 V-0 | 3.24 mm | 0.128 in | 1 A | Brass | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | DIP | Closed Frame | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Beryllium Copper | Tin | -55 C | 125 °C | 16 | Solder | 7.62 mm | 0.3 in | 2 | 8 | ||||

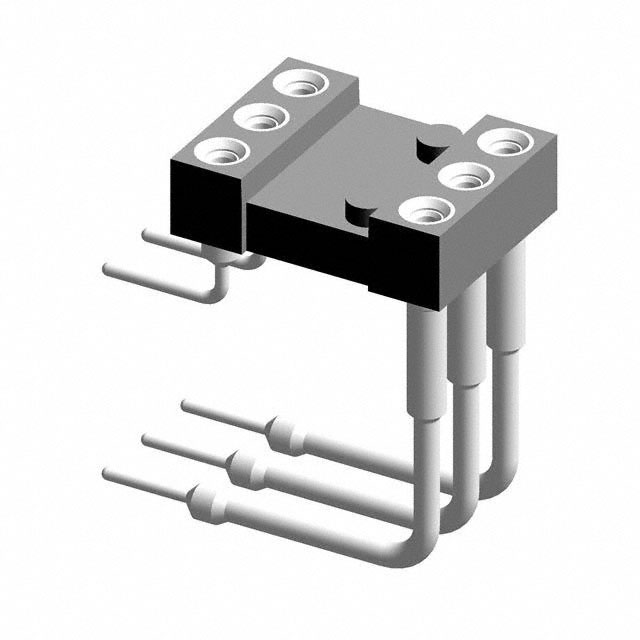

 Preci-Dip | 10 mOhm | UL94 V-0 | 3.24 mm | 0.128 in | 1 A | Brass | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | DIP | Closed Frame | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Beryllium Copper | Tin | -55 C | 125 °C | 6 | Solder | 7.62 mm | 0.3 in | 3 positions or pins | 2 | ||||
 Preci-Dip | 10 mOhm | UL94 V-0 | 3.24 mm | 0.128 in | 1 A | Brass | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | 15.24 mm | 0.6 in | DIP | Closed Frame | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | Beryllium Copper | Tin | -55 C | 125 °C | Solder |
