68690 Series

Catalog

CONN HEADER VERT 44POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Current Rating (Amps)	Termination	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Finish - Post	Contact Type	Insulation Height	Insulation Height	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Shrouding	Fastening Type	Number of Positions Loaded	Contact Finish - Mating

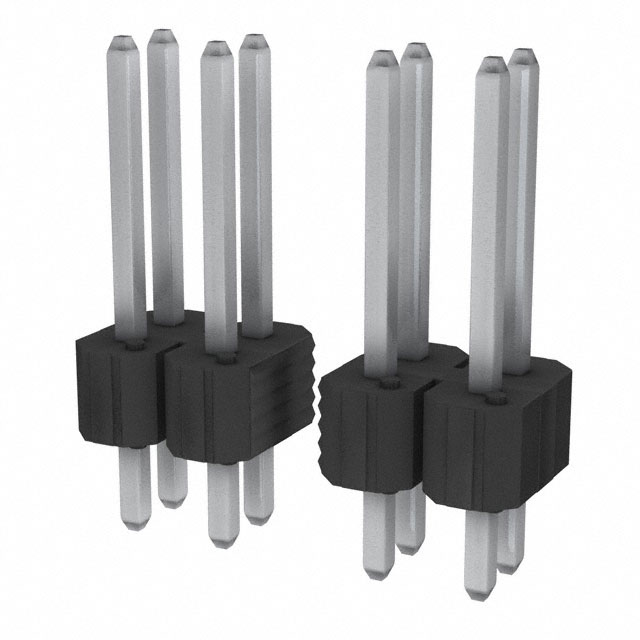

Amphenol ICC (FCI) 68690-444HLF	2.54 çm	100 çin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	44	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square	Tin	Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All
Amphenol ICC (FCI) 68690-424HLF	2.54 çm	100 çin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	24	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square	Tin	Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All

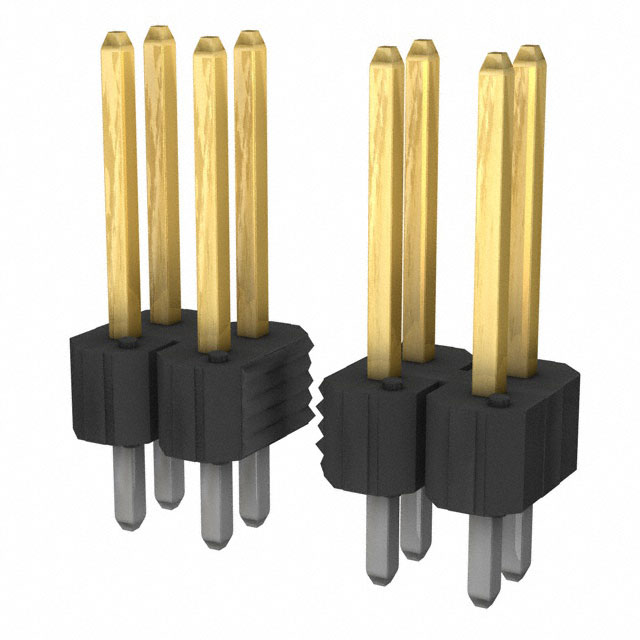

Amphenol ICC (FCI) 68690-172	0.76 Ám	30 Áin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	72	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square		Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All	Gold or Gold GXT™
Amphenol ICC (FCI) 68690-472HLF	2.54 çm	100 çin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	72	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square	Tin	Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All
Amphenol ICC (FCI) 68690-140HLF	0.76 Ám	30 Áin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	40	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square		Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All	Gold or Gold GXT™
Amphenol ICC (FCI) 68690-170HLF	0.76 Ám	30 Áin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	70	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square		Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All	Gold or Gold GXT™
Amphenol ICC (FCI) 68690-456HLF	2.54 çm	100 çin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	56	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square	Tin	Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All
Amphenol ICC (FCI) 68690-462HLF	2.54 çm	100 çin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	62	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square	Tin	Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All
Amphenol ICC (FCI) 68690-114HLF	0.76 Ám	30 Áin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	14	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square		Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All	Gold or Gold GXT™

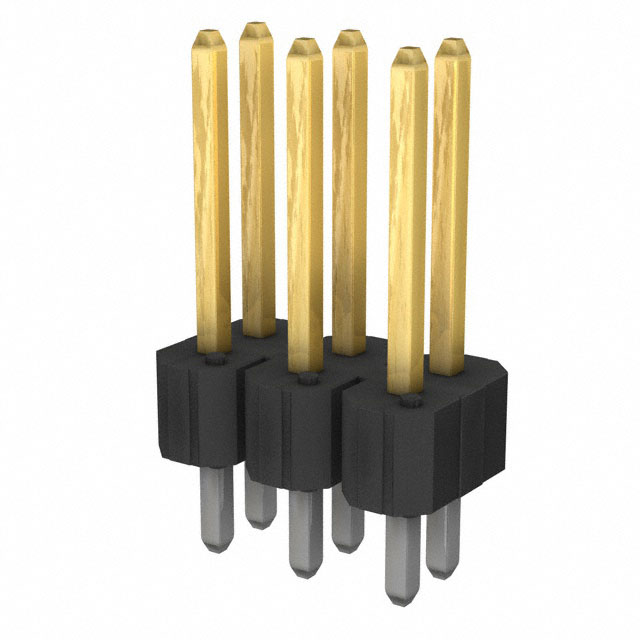

Amphenol ICC (FCI) 68690-206HLF	0.38 µm	15 µin	Phosphor Bronze	Through Hole	UL94 V-0	2.92 mm	0.115 in	2.54 mm	0.1 in	Header	6	0.1 in	2.54 mm	0.318 "	8.08 mm	3 A	Solder	13.55 mm	0.533 in	Square		Male Pin	0.1 in	2.54 mm	2	-65 ░C	130 °C	Black	Unshrouded	Push-Pull	All	Gold or Gold GXT™
