PX0736 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

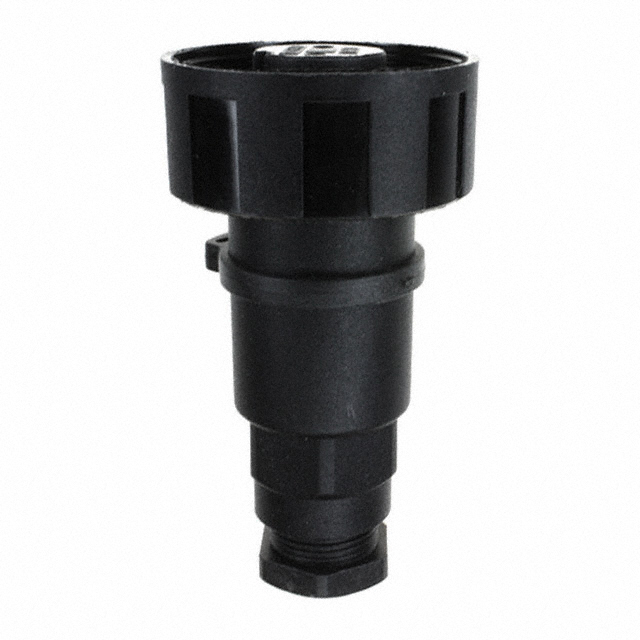

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT RECEPTACLE, 2 CONTACTS, SCREW SOCKET
| Part | Contact Material | Backshell Material, Plating | Insert Material [custom] | Insert Material [custom] | Number of Positions | Mounting Type | Orientation | Termination | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Features | Contact Finish - Mating | Shielding | Primary Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Material Flammability Rating | Shell Material | Ingress Protection | Voltage Rating | Current Rating (Amps) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Brass | Glass Filled Nylon Polyamide (PA) | Nylon | Polyamide (PA) | 2 | Free Hanging (In-Line) | Keyed | Screw | 0.315 in | 0.236 in | 8 mm | 6 mm | Backshell Coupling Nut | Nickel | Unshielded | Plastic | Plug Female Sockets | -20 ░C | 70 °C | Threaded | UL94 HB | Glass Filled Nylon Polyamide (PA) | IP68 IP69K | 277 VAC | 10 A | Black |
 BULGIN LIMITED | Brass | Glass Filled Nylon Polyamide (PA) | Nylon | Polyamide (PA) | 2 | Free Hanging (In-Line) | Keyed | Screw | 0.315 in | 0.236 in | 8 mm | 6 mm | Backshell Coupling Nut | Nickel | Unshielded | Plastic | Plug Male Pins | -20 ░C | 70 °C | Threaded | UL94 HB | Glass Filled Nylon Polyamide (PA) | IP68 IP69K | 277 VAC | 12 Amps | Black |
