IW1830 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
EVB 15W SINGLE-OUTPUT PWR SUPPLY
| Part | Outputs and Type | Outputs and Type | Frequency - Switching | Power - Output | Utilized IC / Part | Supplied Contents | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output | Main Purpose | Board Type | Voltage - Output | Voltage - Breakdown | Package / Case | Package / Case | Package / Case | Topology | Power (Watts) | Supplier Device Package | Internal Switch(s) | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Isolation | Fault Protection | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

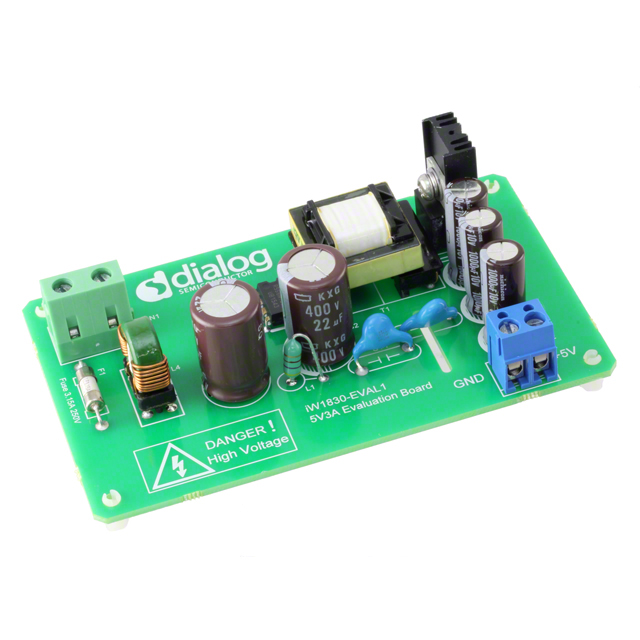

 Renesas Electronics Corporation | Isolated | 1 | 72 kHz | 15 W | iW1830-00 | Board(s) | Flyback | 90 VAC | 264 VAC | 3 A | AC/DC Primary Side | Fully Populated | 5 V | ||||||||||||||||
 Renesas Electronics Corporation | 79 kHz | 700 V | 7.62 mm | 0.3 in 7 Leads | 8-DIP | Flyback | 15 W | 7-PDIP | 264 V | 85 V | Through Hole | 150 °C | -40 °C | Isolated | Over Temperature Over Voltage Short Circuit | ||||||||||||||

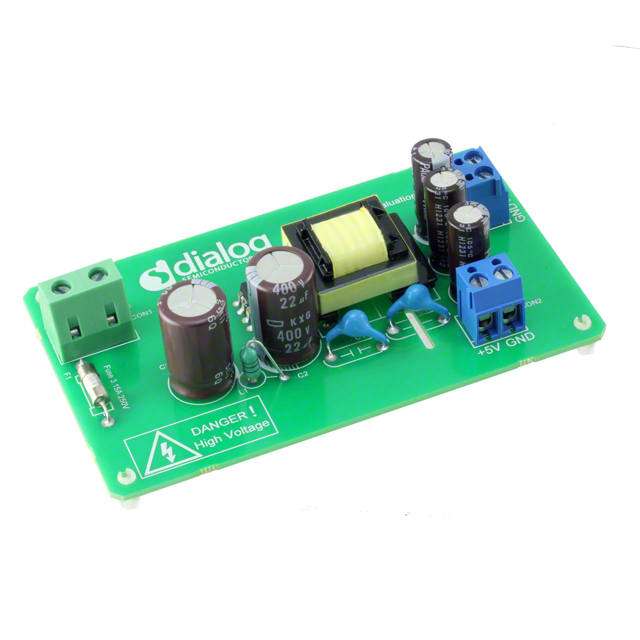

 Renesas Electronics Corporation | Isolated | 2 | 72 kHz | 15 W | iW1830-00 | Board(s) | Flyback | 90 VAC | 264 VAC | 1 A | AC/DC Primary Side | Fully Populated | 5 V 12 V | 500 mA |
