2314820 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

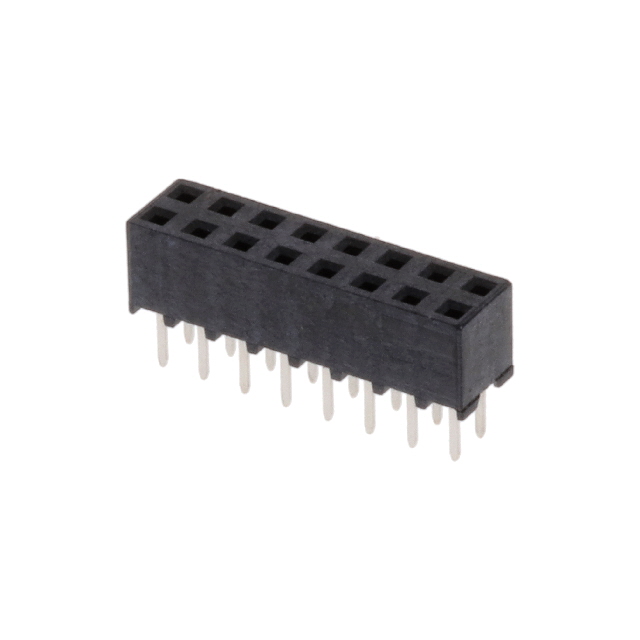

16P,2MM,B-B,REC,DRVT,2.7,0.1AU,T
| Part | Contact Shape | Voltage Rating | Contact Finish - Post | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Connector Type | Material Flammability Rating | Fastening Type | Contact Finish - Mating | Insulation Color | Insulation Height | Insulation Height | Number of Positions Loaded | Number of Rows | Current Rating (Amps) | Insulation Material | Number of Positions | Contact Material | Pitch - Mating [x] | Pitch - Mating [x] | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Square | 125 VDC | Tin | Solder | 0.106 in | 2.69 mm | 125 °C | -40 °C | 3 µm | 118.1 µin | Through Hole | Receptacle | UL94 V-0 | Push-Pull | Gold | Black | 0.177 in | 4.5 mm | All | 2 | 2 A | Liquid Crystal Polymer (LCP) | 16 | Phosphor Bronze | 0.079 in | 2 mm | Female Socket | 0.079 in | 2 mm | 3.94 µin | 0.1 µm |
