SFV16R Series

Catalog

CONN FFC FPC TOP 16POS 0.5MM R/A

Part	Mating Cycles	Housing Color	Actuator Color	Current Rating (Amps)	Locking Feature	Mounting Type	Pitch	Pitch	Housing Material	Height Above Board [z]	Height Above Board [z]	Termination	Connector/Contact Type	Features	Number of Positions	Contact Finish	Contact Material	Material Flammability Rating	Voltage Rating	Actuator Material	Cable End Type	FFC, FCB Thickness	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]

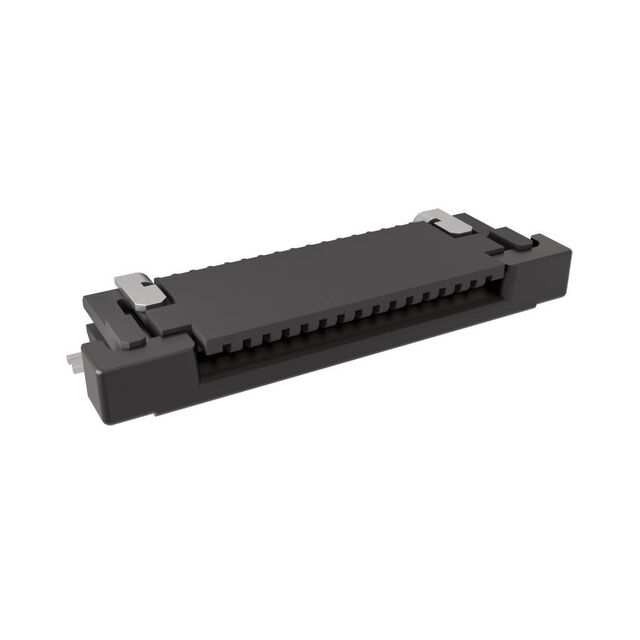

Amphenol ICC (FCI) SFV16R-2STBE1HLF	20	Black	Black	0.5 A	Slide Lock	Right Angle Surface Mount	0.02 "	0.5 mm	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.071 in	1.8 mm	Solder	Contacts Top	Solder Retention Zero Insertion Force (ZIF)	16	Gold	Phosphor Bronze	UL94 V-0	50 V	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tapered	0.3 mm	FFC FPC	-55 C	105 ░C

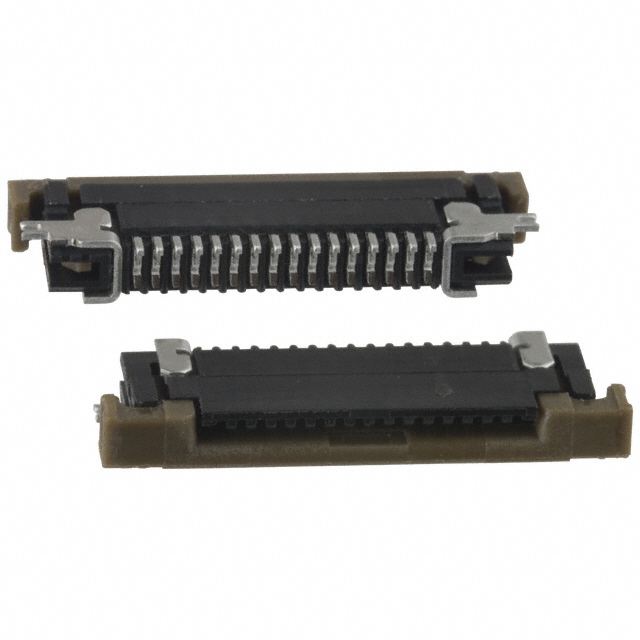

Amphenol ICC (FCI) SFV16R-2STE1LF		Black	Brown	0.5 A	Slide Lock	Right Angle Surface Mount	0.02 "	0.5 mm	Glass Filled Nylon Polyamide (PA)	0.071 in	1.8 mm	Solder	Contacts Top	Solder Retention Zero Insertion Force (ZIF)	16	Tin	Phosphor Bronze	UL94 V-0	50 V	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered		FFC FPC	-55 C	105 ░C	0.3 mm	0.33 mm

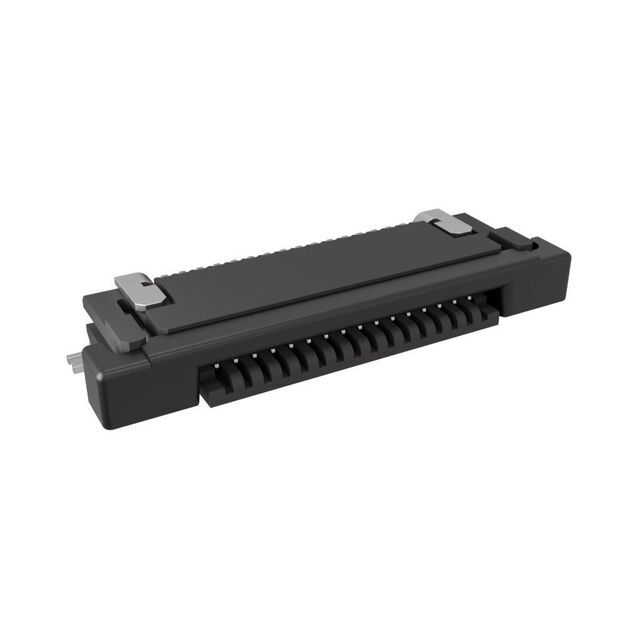

Amphenol ICC (FCI) SFV16R-1STBE1HLF	20	Black	Brown	0.5 A	Slide Lock	Right Angle Surface Mount	0.02 "	0.5 mm	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.071 in	1.8 mm	Solder	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	16	Gold	Phosphor Bronze	UL94 V-0	50 V	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tapered		FFC FPC	-55 C	105 ░C	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFV16R-1STE9HLF	20	Black	Black	0.5 A	Slide Lock	Right Angle Surface Mount	0.02 "	0.5 mm	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.071 in	1.8 mm	Solder	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	16	Tin	Phosphor Bronze	UL94 V-0	50 V	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Straight Tapered		FFC FPC	-55 C	105 ░C	0.3 mm	0.33 mm

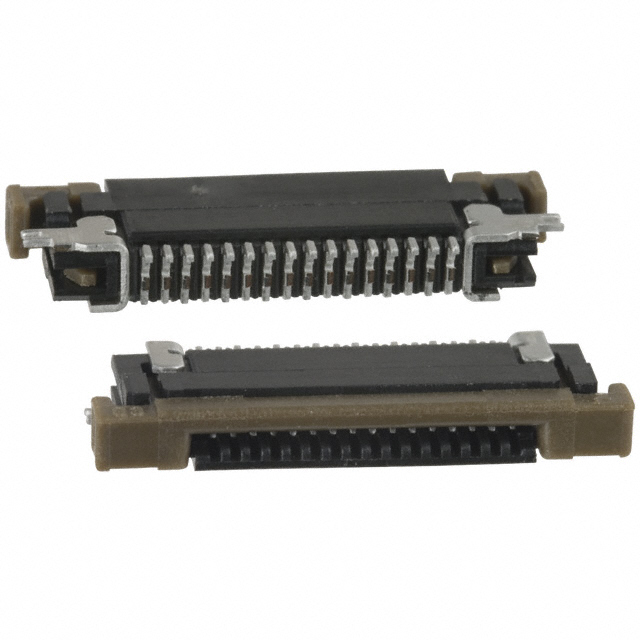

Amphenol ICC (FCI) SFV16R-1STE1LF		Black	Brown	0.5 A	Slide Lock	Right Angle Surface Mount	0.02 "	0.5 mm	Glass Filled Nylon Polyamide (PA)	0.071 in	1.8 mm	Solder	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	16	Tin	Phosphor Bronze	UL94 V-0	50 V	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered		FFC FPC	-55 C	105 ░C	0.3 mm	0.33 mm

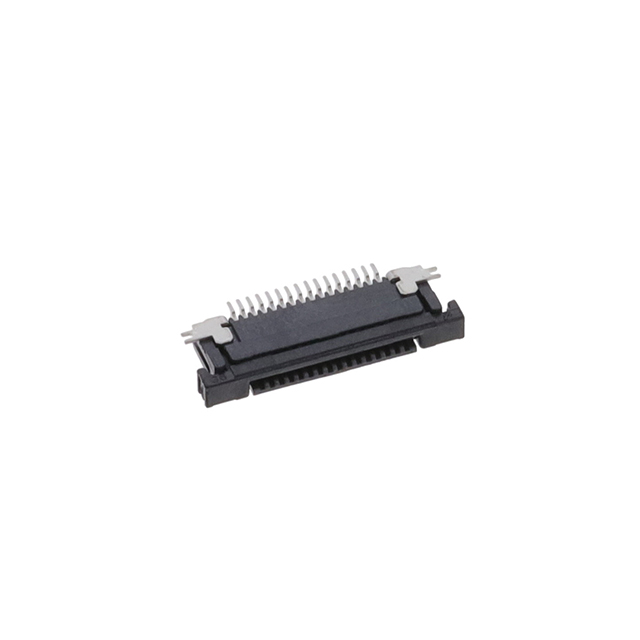

Amphenol ICC (FCI) SFV16R-2STE1HLF	20	Black	Brown	0.5 A	Slide Lock	Right Angle Surface Mount	0.02 "	0.5 mm	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.071 in	1.8 mm	Solder	Contacts Top		16	Tin	Phosphor Bronze	UL94 V-0	50 V	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Notched		FFC FPC	-55 C	105 ░C	0.3 mm	0.33 mm
