080SM Series

Catalog

LINE FILTER 250VAC 1A CHASSIS

Part	Current	Voltage - Rated AC	Approval Agency	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Mounting Type	Termination Style	Filter Type	Voltage - Rated AC (Phase to Phase)

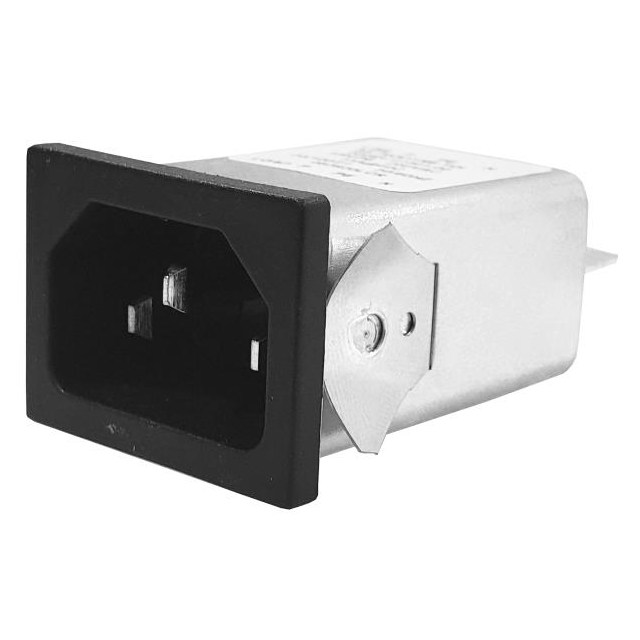

Astrodyne TDI 080SM.00100.00	1 A	250 V	CE cETLus SEMKO	General Purpose	60 Hz	50 Hz	-25 °C	40 °C	Single Stage	Chassis Mount	IEC 320-C14 Quick Connect	Single Phase
Astrodyne TDI 080SM.00800.00	8 A	250 V	CE cETLus SEMKO	General Purpose	60 Hz	50 Hz	-25 °C	40 °C	Single Stage	Chassis Mount	IEC 320-C14 Quick Connect	Single Phase
Astrodyne TDI 080SM.00600.00	6 A	250 V	CE cETLus SEMKO	General Purpose	60 Hz	50 Hz	-25 °C	40 °C	Single Stage	Chassis Mount	IEC 320-C14 Quick Connect	Single Phase
Astrodyne TDI 080SM.00300.00	3 A	250 V	CE cETLus SEMKO	General Purpose	60 Hz	50 Hz	-25 °C	40 °C	Single Stage	Chassis Mount	IEC 320-C14 Quick Connect	Single Phase
Astrodyne TDI 080SM.01000.00	10 A	250 V	CE cETLus SEMKO	General Purpose	60 Hz	50 Hz	-25 °C	40 °C	Single Stage	Chassis Mount	IEC 320-C14 Quick Connect	Single Phase
Astrodyne TDI 082.01001.00-RS	10 A	250 V	cURus VDE	General Purpose	60 Hz	50 Hz	-25 °C	85 °C	Single Stage	Chassis Mount	IEC Inlet-C14 Quick Connect	Single Phase	1.45 kV
Astrodyne TDI 080SM.01500.00	15 A	250 V	CE cETLus SEMKO	General Purpose	60 Hz	50 Hz	-25 °C	40 °C	Single Stage	Chassis Mount	IEC 320-C14 Quick Connect	Single Phase
Astrodyne TDI 080SM.02000.00	20 A	250 V	CE cETLus SEMKO	General Purpose	60 Hz	50 Hz	-25 °C	40 °C	Single Stage	Chassis Mount	IEC 320-C20 Quick Connect	Single Phase
