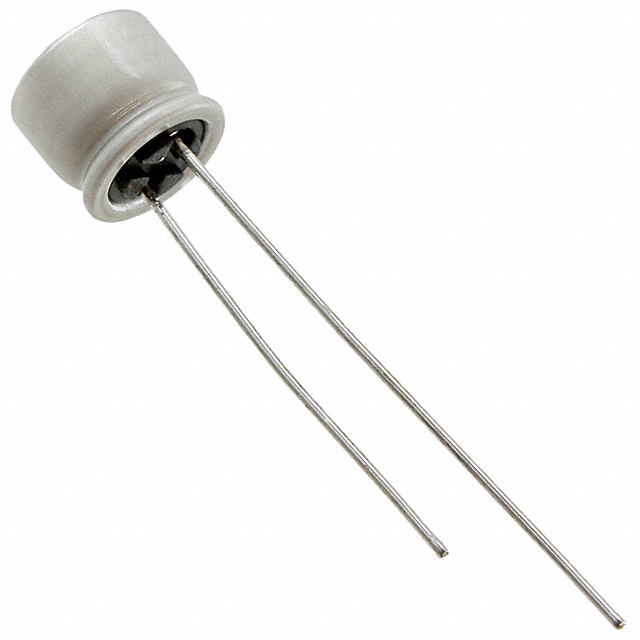

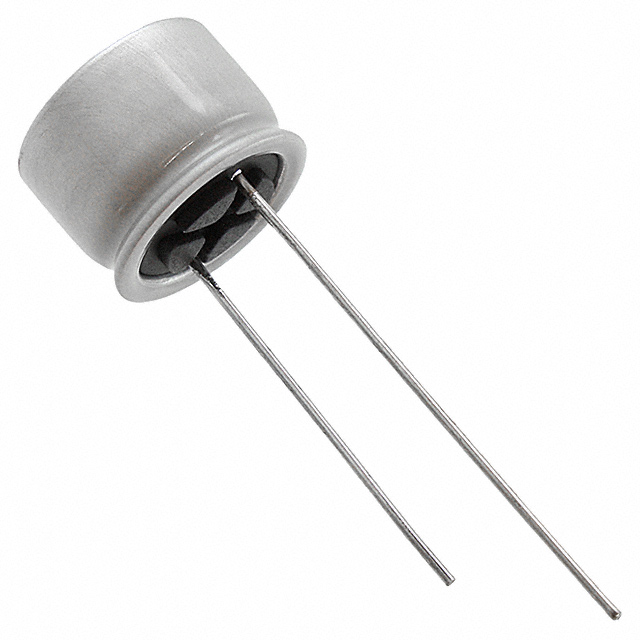

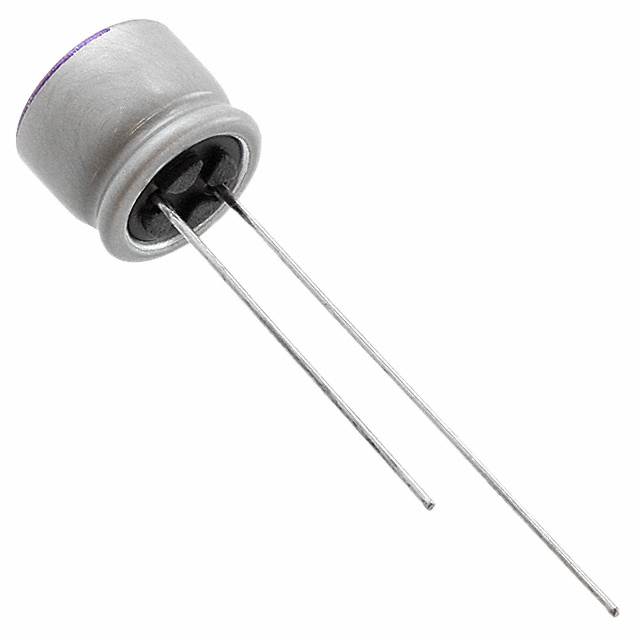

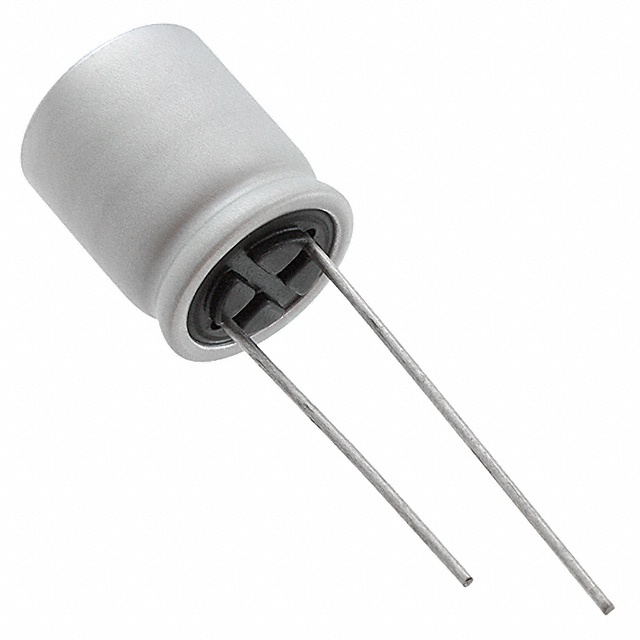

os-con-sep Series

Catalog

CAPACITOR: POLYMER; 560UF; 10VDC; THT; ±20%; BODY DIM: Ø10X13MM

Part	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Capacitance	Mounting Type	Lifetime @ Temp.	Tolerance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ Low Frequency	Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components 10SEP560M	13 mOhms	0.512 "	13 mm	-55 C	105 ░C	5.23 A	0.197 "	5 mm	560 µF	Through Hole	3000 Hrs	20 %	General Purpose	0.394 in	10 mm	10 V	261.5 mA	Polymer	Can Radial
Panasonic Electronic Components 10SEP120M	35 mOhms			-55 C	105 ░C	2.56 A	0.138 in	3.5 mm	120 µF	Through Hole	3000 Hrs	20 %	General Purpose	0.315 in	8 mm	10 V	128 mA	Polymer	Can Radial	0.276 in	7 mm
Panasonic Electronic Components 10SEP560M+T	13 mOhms	0.512 "	13 mm	-55 C	105 ░C	5.23 A	0.197 "	5 mm	560 µF	Through Hole	3000 Hrs	20 %	General Purpose	0.394 in	10 mm	10 V	261.5 mA	Polymer	Can Radial
Panasonic Electronic Components 16SEP150M+T	30 mOhms			-55 C	105 ░C	3.02 A	0.197 "	5 mm	150 µF	Through Hole	3000 Hrs	20 %	General Purpose	0.394 in	10 mm	16 V	151 mA	Polymer	Can Radial	0.315 in	8 mm
