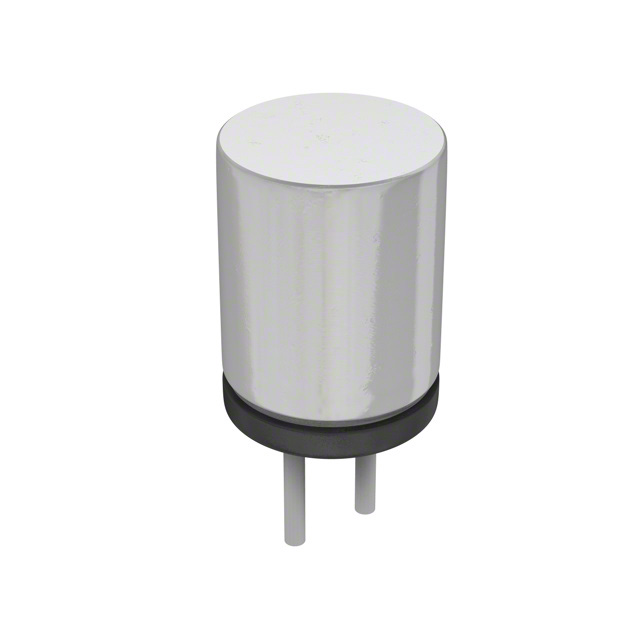

FUSE 125V FA TR3 SL .050A
FUSE 125V FA TR3 SL .050A
| Part | Package / Case | Breaking Capacity @ Rated Voltage | Fuse Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | DC Cold Resistance | Approval Agency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Current Rating (Amps) | Mounting Type | Response Time | Voltage Rating - DC | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Can Radial Vertical | 50 A | Board Mount | 70 °C | -25 °C | 125 V | 3.41 Ohms | CSA UL | 8 mm | 0.315 " | 0.236 in | 6 mm | 50 mA | Through Hole | Fast Blow | 63 VDC | 0.00007 |
