16_QN-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

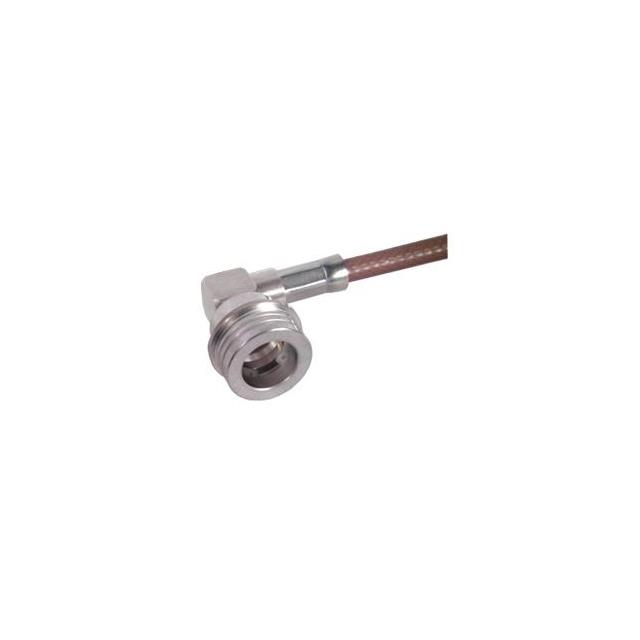

16_QN-50-4-3/133_NH
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Material | Center Contact Plating | Dielectric Material | Number of Ports | Impedance | Contact Termination | Connector Style | Frequency - Max [Max] | Mounting Type | Shield Termination | Connector Type | Cable Group | Housing Color | Fastening Type | Center Contact Material | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | LMR-240 | Silver | Push-Pull | Brass | |
 Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | RG-58 | Silver | Push-Pull | Brass | |
 Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | RG-214 | Silver | Push-Pull | Brass | 393 |
 Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Solder | Plug Male Pin | RG-141 | Silver | Push-Pull | Brass | |
 Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | Silver | Push-Pull | Brass | ||
 Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | LMR-400 | Silver | Push-Pull | Brass | |
 Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | RG-142 | Silver | Push-Pull | Brass | 400 |
Huber+Suhner, Inc. | White Bronze | 125 °C | -40 C | 1000 VDC | Brass | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | 50 Ohms | Solder | QN | 11 GHz | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | RG-213 | Silver | Push-Pull | Brass |
